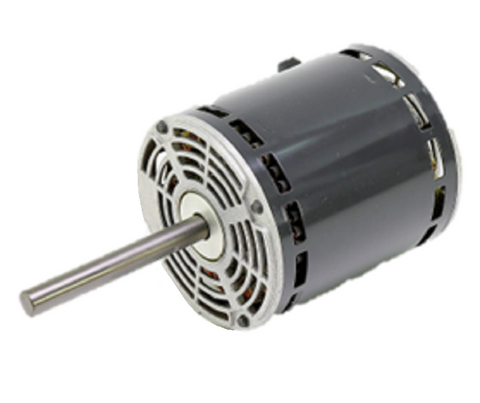

Nidec-US Motors 4670 Motor

1HP, 208-230Vac, Single Phase, 1100 RPM, 4 Speed, 6.0 Amps, 48Y NEMA Frame Size, Open Drip Proof Enclosure, Self Aligning Sleeve Bearing, Band Mount, 5/8" Shaft, CCW Lead End Rotation, Permanent Split Capacitor Motor

Nidec-US Motors 4670 Motor – 1HP 208-230V AC, 4-Speed, OEM Direct Replacement

The Nidec-US Motors 4670 Motor is a high-performance, OEM direct replacement motor engineered for reliability in HVAC applications such as blowers and direct drive fans. Delivering 1 horsepower and operating at 208–230V, this single-phase, 4-speed motor provides efficient airflow control and smooth performance with minimal maintenance.

Key Features:

• Horsepower: 1 HP

• Voltage: 208-230V AC

• Phase: Single Phase

• Speeds: 4-Speed (Base RPM: 1100)

• Frame Size: 48Y NEMA

• Enclosure Type: Open Drip Proof (ODP)

• Mounting: Band Mount

• Shaft: 5/8" Diameter, Counterclockwise Lead End (CCWLE) Rotation

• Bearing Type: Self-Aligning Sleeve Bearing

• Thermal Protection: Automatic Reset

• Duty: Continuous

• Torque: 75.94 ft-lbs

• Weight: 22 lbs

Specifications:

• Model Number: K055THK9039011B

• Full Load Amps: 6.0 A

• Frequency: 60 Hz

• Insulation Class: B

• Construction Material: Steel Frame

• Overall Length (C Dimension): 11.3 in

• Standards Met: NEMA

• Motor Category: General Purpose / OEM Direct Replacement

• UPC: 786382005368

• Harmonization Code: 8501.40.6040

Applications:

• HVAC Blowers

• Direct Drive Fans

• Industrial and Commercial Ventilation Systems

Product Overview:
Whether you're replacing a failed motor or upgrading for improved efficiency, the Nidec-US Motors 4670 offers the quality, durability, and performance you expect from a trusted OEM motor manufacturer. Designed for easy installation and long-lasting operation, it’s a top choice for professionals in HVAC and related industries.
