Nidec-US Motors 5563EOR Motor

208-230v 1/3, 1/5hp ECM Motor

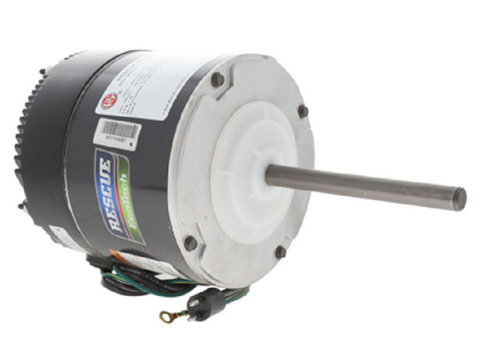

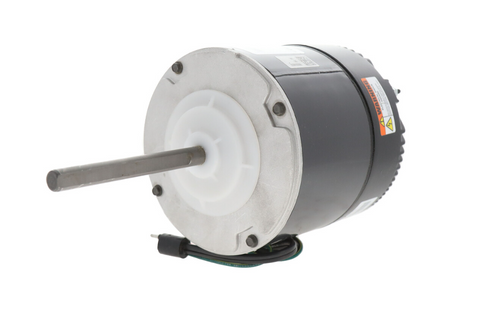

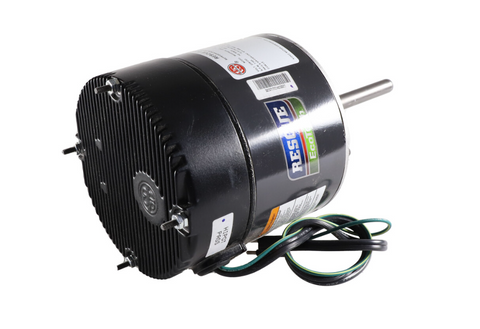

Nidec-US Motors 5563EOR ECM Motor – 208-230V, 1/3 – 1/5 HP, TEAO, Refrigeration Evaporator

The Nidec-US Motors 5563EOR is a high-efficiency ECM (Electronically Commutated Motor) designed for refrigeration evaporator applications, including commercial and industrial cooling systems. With a totally enclosed air-over (TEAO) design, this motor provides reliable performance while operating quietly and efficiently. Ideal for systems requiring precise airflow and energy savings, the 5563EOR is a trusted solution for HVAC and refrigeration professionals.

Key Features & Benefits:

• High-efficiency ECM motor – reduces energy consumption and operating costs

• Horsepower: 1/3 – 1/5 HP with 1,145 RPM for consistent performance

• Voltage: 208-230V for wide application compatibility

• Totally Enclosed Air Over (TEAO) design – protects motor from dust and debris

• Ball bearings on both ends – ensures smooth, reliable operation

• Single-speed operation with 10 poles for precise airflow control

• Electronic thermal protection – safeguards the motor from overheating

• Belly band mounting for easy installation

• Lyall plug model: M055ESL1240012B for compatibility with RESCUE EcoTech® systems

Specifications:

• Brand: Nidec-US Motors

• Model Number: 5563EOR / M055ESL1240012B

• Motor Type: ECM (Electronically Commutated Motor), FHP

• Horsepower: 1/3 – 1/5 HP

• RPM: 1,145

• Voltage: 208-230V

• Phase: Single

• Poles: 10

• Mounting Type: Belly Band

• Motor Enclosure: TEAO (Totally Enclosed Air Over)

• Bearings: Ball (shaft and opposite end)

• Stator Diameter: 5.5 in

• Stack: 1.375 in

• Insulation Class: B

• Rotation: Counterclockwise (CCW lead end)

• Ambient Temperature: 60°C

• Full Load Amps: 2.5

• Shipping Weight: 12 lbs

Product Overview:

The Nidec-US Motors 5563EOR ECM Motor is engineered for efficient, reliable, and quiet operation in refrigeration evaporator systems. Its totally enclosed design, ball bearings, and electronic thermal protection provide long-lasting durability, while ECM technology ensures energy savings and precise airflow control.

Ideal for HVAC technicians and service professionals, this motor delivers OEM-quality performance and is compatible with RESCUE EcoTech® refrigeration systems.

Optimize your refrigeration system with the Nidec-US Motors 5563EOR ECM Motor – reliable, energy-efficient, and built for professional-grade performance.
