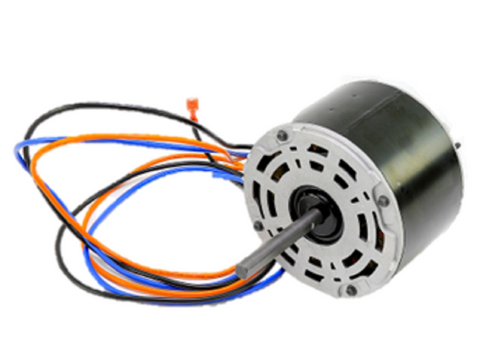

Nordyne 621720 Motor

As a service tech, you know that finding an exact OEM condenser fan motor is the only way to ensure your client's unit maintains its original performance specs. The Nordyne 621720 Motor is a heavy-duty, 1/8 HP HVAC motor specifically engineered for Nordyne condenser units. Operating at 1100 RPM on a 208/230V single-phase circuit, this CWLE rotation motor provides the precise airflow required to manage heat transfer efficiently. Whether you are performing a mid-season repair or a complete system overhaul, this motor offers a drop-in replacement that eliminates the guesswork associated with "universal" motors that never quite fit the shroud or match the amp draw.

The Nordyne 621720 serves as the direct replacement for 621720R and 621300 models, ensuring that mounting patterns and shaft lengths remain consistent with the original factory setup. This 1.0 Amp motor utilizes a standard 1-phase power supply, making it compatible with a wide range of residential and light commercial equipment. By utilizing genuine Nordyne parts, you preserve the internal balance of the condenser assembly and prevent the premature wear of surrounding components often caused by improper motor torque or vibration.

Technical Specifications and Benefits:

• Direct OEM Replacement: Verified 1:1 match for 621720R and 621300, ensuring zero-modification installation.
• Optimized Performance: 1/8 horsepower and 1100 RPM output matched to factory static pressure requirements.
• Electrical Efficiency: Rated at 208-230V and a low 1.0 Amp draw for reduced energy consumption.
• Rotation Direction: Clockwise Lead End (CWLE) configuration to align with original fan blade pitch.
• Durable Construction: Built for continuous outdoor duty to withstand seasonal temperature extremes.

Common Questions:

What is the frame size of the 621720 motor?
This motor is a 42-frame diameter, typically found in residential Nordyne, Miller, and Intertherm condensers.

Does this motor require a capacitor?
Yes, as a permanent split capacitor (PSC) motor, it requires a run capacitor (refer to the motor nameplate for the specific MFD/uF rating required).

Can I use this if my old motor is CCWLE?
No, this motor is fixed CWLE (Clockwise Lead End). Verify your fan blade pitch reaches peak efficiency with clockwise rotation before ordering.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
