Nordyne 621952 Motor

208/230v1ph 1/20hp 1100rpm Mtr

621952 is the direct replacement for 621952R

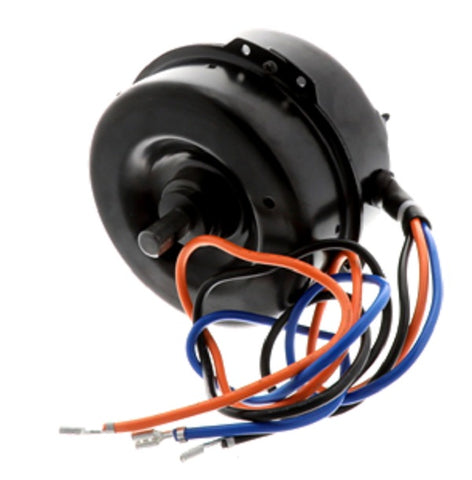

Nordyne 621952 Motor – 208/230V 1/20 HP PSC Condenser Fan Motor (1100 RPM, CW Rotation)

The Nordyne 621952 condenser fan motor is a high-quality OEM replacement motor designed for reliable performance in residential and light commercial HVAC systems. Engineered for energy efficiency and longevity, this 1/20 HP, 208–230V PSC motor is ideal for replacing motors in models like DS4BD, S3BA, S5BA, T3BA (12K–18K BTU).

Key Features:

• Brand: Partners Choice / Nordyne

• Model Number: 621952

• Motor Type: PSC (Permanent Split Capacitor)

• Horsepower: 1/20 HP

• Voltage: 208–230V, Single Phase

• Frequency: 60 Hz

• Speed: 1100 RPM

• Amperage: 0.35 A

• Number of Speeds: 1

• Rotation: Clockwise (CW) – Lead End

• Enclosure: Totally Enclosed Air Over (TEAO)

• Bearings: Ball Bearing

• Duty: Continuous (S1)

• Insulation Class: B

• NEMA Frame: 42

• UPC: 663132163984

• Prop 65 Warning: Yes (California residents)

Applications:
Compatible with multiple Nordyne models, this motor is a dependable replacement for older condenser fan motors used in air conditioning units ranging from 12K to 18K BTU. Perfect for service technicians, HVAC contractors, or DIY homeowners needing a long-lasting motor solution.

Why Choose the Nordyne 621952 Motor?
Built with durable copper and steel components, ball bearing support, and a totally enclosed design, this motor offers quiet operation, reduced maintenance, and exceptional durability under continuous duty cycles.
