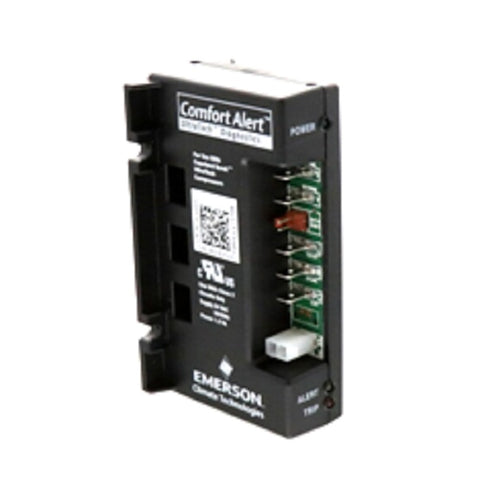

Nordyne 624651R Comfort Alert

The Nordyne 624651R Comfort Alert module is a critical HVAC diagnostic component engineered specifically for 2-stage Copeland Scroll compressors. As a veteran technician, you know that intermittent faults in high-efficiency HVAC systems can lead to expensive compressor troubleshooting. This OEM replacement part eliminates the guesswork by using the compressor as an internal sensor to monitor and analyze system data in real-time. Designed for seamless integration into the outdoor unit's electrical box, the Comfort Alert 2 module monitors thermostat demand and motor performance to identify electrical and system-related failures before they lead to catastrophic equipment loss.

Operating within an 18-30VAC range, this 2-stage diagnostic module provides active protection by detecting conditions like short cycling, locked rotors, and power supply interruptions. The 624651R features a tri-color LED interface that flashes specific fault codes, allowing you to quickly isolate the root causeùwhether it is an open run circuit, welded contactor, or low line voltageùwithout the need for external sensors. Its fault code memory ensures you can view the last recorded alarm upon power-up, significantly reducing diagnostic time during service calls for split-system air conditioners and heat pumps.

Key Benefits for the HVAC Contractor:

• Advanced Diagnostics: Effectively identifies 9 different fault codes, including locked rotor, short cycling, and low voltage conditions, ensuring accurate first-time repairs.
• System Protection: Actively monitors the 2-stage compressor solenoid and 24V power supply to prevent operation under damaging conditions.
• Reduced Callbacks: Improves troubleshooting accuracy, which has been shown to reduce unnecessary compressor replacements by up to 50%.
• Easy Installation: Mounts directly in the condensing unitÆs control box; no additional external probes or sensors are required for operation.
• OEM Compatibility: Genuine Nordyne factory replacement part designed to meet precise HVAC system specifications for Maytag, Frigidaire, and Intertherm units.

Common Technical Questions:

How do I reset the fault codes on the 624651R?
Most alert codes can be manually reset by cycling the 24VAC control power to the module. Upon restoration of power, the previous code will flash for 60 seconds for verification before returning to normal monitoring status.

Does this module support power savings for the solenoid?
The 624651R is designed for 2-stage systems. While some versions include power modulation to reduce VA load, ensure your control transformer is rated for the additional demand (typically 7-10VA) when the solenoid is energized.

What does a flashing Red "TRIP" LED indicate?
A solid red light signifies that thermostat demand (Y) is present but no compressor current is detected. A flashing red light indicates the anti-short cycle timer is active, which prevents the compressor from starting too frequently.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
