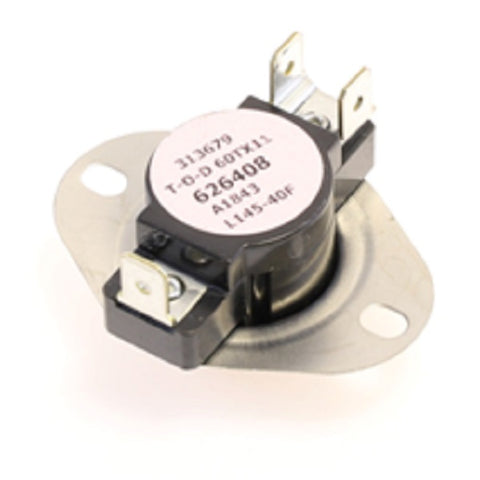

Nordyne 626408R Limit Switch

The Nordyne 626408R Limit Switch is a critical safety component designed for precise temperature regulation within Nordyne, Miller, and Intertherm gas-fired furnaces. This SPST furnace limit switch features a 105-145 degree Fahrenheit temperature range, ensuring the blower assembly engages and disengages at established thermal thresholds to prevent heat exchanger overheating. Engineered for high-cycle reliability, this manual reset limit switch or automatic cycling control (depending on specific heater configuration) acts as a primary furnace high limit sensor. When troubleshooting short-cycling or furnace overheating codes, verifying the continuity and setpoints of this OEM Nordyne replacement part is essential for restoring system safety. The 626408R thermal switch is built to withstand the rigorous internal cabinet temperatures of mobile home and residential HVAC units, providing accurate nuisance-trip resistance while maintaining strict HVAC safety control standards.

• Precise Thermal Calibration: Calibrated for a 105°F to 145°F operating range to protect the heat exchanger from structural fatigue.
• OEM Compatibility: Direct drop-in replacement for Nordyne, Miller, and Intertherm forced-air systems, ensuring correct terminal alignment and mounting.
• Enhanced System Safety: Prevents hazardous operation by interrupting the burner circuit if internal plenum temperatures exceed safe limits.
• Durable Construction: Built with high-grade bimetal sensing elements for consistent response times across thousands of thermal cycles.

Common Contractor Questions

How do I diagnose a faulty 626408R limit switch?
Technicians should check for continuity across the terminals when the system is cool. If the circuit remains open at room temperature, the internal bimetal disc has failed or the switch has tripped and cannot reset. Always verify airflow via the HVAC blower motor and filter cleanliness before replacing the switch.

Will this part solve a furnace that keeps shutting off?
If the furnace is "limit tripping," this switch is performing its safety function. While a weak switch can cause premature trips, ensure you check for restricted ductwork or a failing furnace inducer motor that might be causing actual overheat conditions before concluding the switch is defective.

Is this switch compatible with 24V and 120V circuits?
Yes, this limit control is designed to interface with standard HVAC control boards and safety loops typically found in residential gas heating equipment.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
