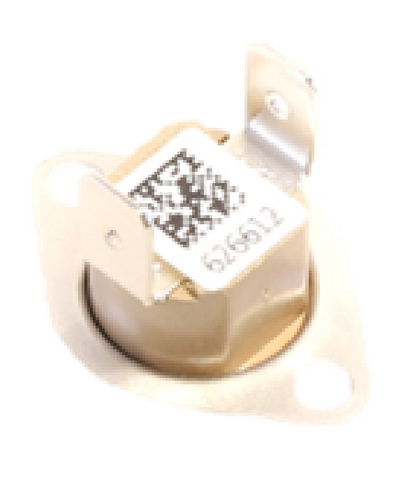

Nordyne 626612 Limit Switch

The Nordyne 626612 Limit Switch is a high-precision, automatic-reset safety control engineered for furnace overheat protection. As a critical HVAC high limit sensor, the 626612 is calibrated to open at 165°F and reset once the heat exchanger temperature drops to 135°F. Professional technicians recognize this as the official replacement for legacy part numbers 626561R, 626561, and 626612R. This genuine OEM furnace limit switch is standard in Nordyne, Intertherm, Miller, Maytag, and Tappan units, ensuring a direct-fit without the need for mounting modifications.

For contractors servicing mobile home furnaces or residential air handlers, the 626612 L165-30 limit control offers the snap-action response necessary to prevent thermal damage to the heat exchanger. This fixed temperature switch handles the safety circuit interruption efficiently when airflow is restricted by clogged filters or blower failure. Its robust design is specifically tailored for the high-cycle demands of modern heating systems, providing the reliable continuity needed for consistent burner operation.

Key Benefits for Technicians

• Direct OEM Compatibility: Verified replacement for 626561R and 626612-series switches in Nordyne and Intertherm systems.
• Standardized Thermal Specs: Precision 165°F Open/135°F Close (L165-30) rating maintains factory safety standards.
• Automatic Reset Function: Re-engages the heating circuit automatically once temperatures return to safe operating levels.
• Durable Construction: Engineered to withstand the thermal stress of frequent cycling in demanding HVAC environments.

Common Questions

How do I know if the Nordyne 626612 has tripped?
If your furnace blower continues to run while the burners remain off, or if the system is short-cycling, the limit switch may have opened due to high internal temperatures. Use a multimeter to check for continuity across the terminals when the system is cool; no continuity typically indicates a failed switch.

Can I use this switch in both gas and electric furnaces?
Yes, the 626612 is a versatile safety control used across various heating platforms, including gas-fired furnaces and electric air handlers, provided the 165°F limit matches the original equipment manufacturer's specification.

What causes a limit switch like the 626612 to fail frequently?
Repeated tripping is usually a symptom of airflow issues, such as a dirty evaporator coil, clogged air filters, or a failing blower motor. Replacing the switch will restore safety, but the underlying airflow restriction should also be addressed.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
