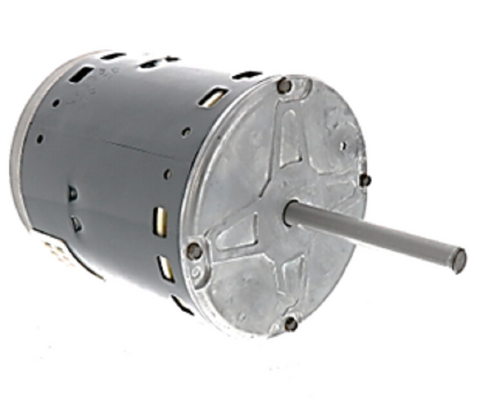

Nordyne M0021808R Motor

The Nordyne M0021808R Motor is a high-efficiency 3/4HP 208/230V 1PH ECM Motor, engineered to serve as the direct OEM replacement for the discontinued M0021808 blower motor. Utilizing X13 constant torque technology, this electronically commutated motor provides significant energy savings and quieter operation compared to legacy PSC alternatives. It features a broad 1050 RPM range and is typically pre-programmed for specific Nordyne air handler and furnace applications in Intertherm, Miller, and Frigidaire units. The M0021808R is built with a durable 48Y frame and utilizes a dual-voltage design (208-230V) to accommodate various field requirements. As an OEM replacement motor, it ensures proper torque curves and airflow modulation across various static pressures, maintaining the factory-specified performance of the HVAC system. Technical specifications confirm it operates on a single-phase power supply and features a TEFC (totally enclosed fan-cooled) design to protect core internal components from environmental debris.

• Direct OEM Replacement: Engineered as a drop-in successor for the M0021808, ensuring zero-gap compatibility with Nordyne HVAC parts.
• Variable Speed Efficiency: Features ECM X13 technology for optimal torque management and reduced amperage draw during operation.
• High Performance: Rated at 3/4 HP and 1050 RPM, delivering consistent static pressure performance for residential and light commercial units.
• Rugged Construction: Designed with a TEFC enclosure and heavy-duty ball bearings for increased service life in demanding environments.

Does this motor require field programming?
No, the M0021808R is typically pre-programmed to meet the torque and speed requirements of compatible Nordyne and Nortek equipment, allowing for a straightforward "plug and play" installation for contractors.

What are the signs that a 3/4HP ECM motor needs replacement?
Common failure indicators include the "hunting" effect (motor surging), failure to start despite receiving proper control signals, or excessive noise caused by bearing wear or module failure.

Can I use this to replace a standard PSC motor?
This is an ECM motor designed specifically for systems with ECM controls. Conversion from a PSC to this ECM model would require matching original factory wiring and control boards.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
