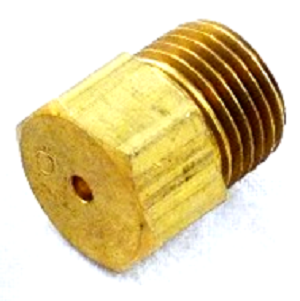

Nordyne 661049R Orifice

The Nordyne 661049R Orifice is a precision-engineered #49 natural gas burner orifice designed for specific gas furnace manifold assemblies. Featuring a .049 port size, this component is critical for maintaining the correct BTU input and ensuring stoichiometric combustion within the heat exchanger. As the direct replacement for Nordyne 661049, this part addresses common furnace burner maintenance issues such as clogged gas orifices or improper flame patterns caused by debris buildup. For technicians performing a Nordyne furnace repair, the 661049R ensures a factory-spec gas flow rate, preventing incomplete combustion and soot accumulation. This OEM component is manufactured to strict tolerances to withstand high-temperature environments near the burner head. Always verify the gas furnace manifold pressure and consult the appliance rating plate to ensure this #49 drill size orifice matches the required delivery specifications for the local altitude and gas type.

Key Technical Benefits:

• Direct OEM Replacement: replaces legacy part 661049 for a seamless fit.
• Precision Machined: #49 drill size ensures accurate natural gas flow rate for consistent ignition.
• Optimized Combustion: Helps eliminate yellow flames and carbon monoxide risks associated with mismatched orifices.
• Durable Construction: Engineered to resist thermal expansion and corrosion in high-heat zones.

Common Installation Questions:

Can I use this orifice for a propane conversion?
No, the 661049R is specifically sized for natural gas applications. A smaller orifice size is typically required for LP conversions due to the higher BTU content and pressure of propane.

How do I verify if this fits my Nordyne furnace?
Cross-reference your model number with the manufacturer's parts list; this .049 burner orifice is common in several Intertherm and Miller gas furnace series.

What causes an orifice to fail?
While the brass itself rarely fails, clogged burner orifices from pipe dope, oxidation, or spiders can disrupt the gas stream, necessitating a replacement to restore proper furnace operation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
