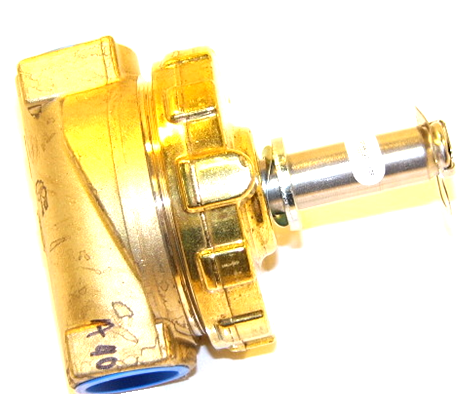

Parker 12FS5C2348ACF Valve

When your facility requires high-capacity fluid control, the Parker 12FS5C2348ACF stands as a heavy-duty solution for demanding steam solenoid valve applications. Built with a robust forged brass body and a 3/4 inch NPT connection, this 2-way normally closed valve is engineered for steam service at pressures up to 50 PSI and media temperatures reaching 300°F. Operating with a 120V coil, the 11-watt internally piloted actuation ensures reliable cycling in industrial laundry, autoclaves, and sterilizers. The EPDM seals provide superior chemical resistance and thermal stability, maintaining a high flow coefficient of 7.4 Cv for efficient throughput. This Parker Gold Ring series component is designed for technicians who prioritize debris tolerance and long-term system health in harsh environments. Integrating this valve into your steam manifold or piping system ensures consistent closure and performance in mission-critical HVACR and institutional cooking setups.

• High Flow Capacity: Features a 7.4 Cv rating and 3/4" orifice for maximum steam and hot water throughput.
• Durable Construction: Forged brass body with EPDM seals designed for 300°F fluid temperatures and 50 PSI steam pressure.
• Versatile Application: Ideal for autoclaves, dry cleaning equipment, steam pressing, and institutional food warming.
• Reliable Actuation: 120V/60Hz Fail-safe normally closed operation prevents accidental flow during power loss.
• NEMA Rated Protection: Equipped with a NEMA 4/4X 1/2" conduit coil for resistance to moisture and corrosion.

Is the 12FS5C2348ACF compatible with hot water?
Yes, while optimized for steam service up to 50 PSI, this valve is also rated for hot water applications, provided the differential pressure meets the 1 PSI minimum requirement.

What is the minimum operating pressure for this valve?
Because this is an internally piloted solenoid valve, it requires a minimum pressure differential of 1 PSI to actuate the diaphragm correctly.

Can I install this valve in any orientation?
For optimal performance and to prevent sediment buildup, it is recommended to install the valve in a horizontal pipeline with the solenoid vertical and upright.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
