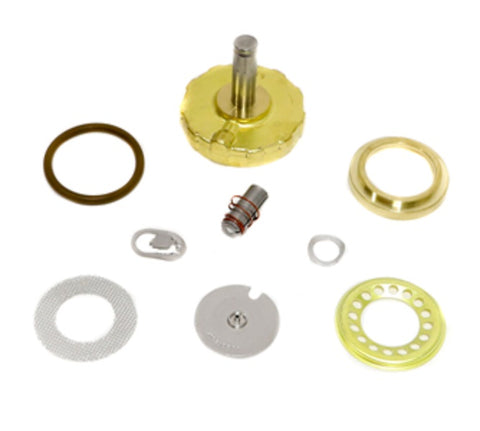

Parker Fluid Control 12FS5C2448ACHR Repair Kit

The Parker 12FS5C2448ACHR Repair Kit is a professional-grade solution for rebuilding 3/4 inch solenoid valves used in high-temperature fluid control systems. Specifically engineered for the Parker 4D25 reference valve, this kit addresses common failure points in steam and hot water applications. Featuring a PTFE seal (Polytetrafluoroethylene) and rugged brass internal components, the assembly is rated for a maximum media temperature of 353°F. Contractors relying on precise flow control will find the 7.40 Cv flow factor remains consistent after installation, ensuring the system maintains its original 125 PSI MOPD (Maximum Operating Pressure Differential) for both steam and hot water. This kit eliminates internal bypass issues and restores the 11-watt coil's ability to actuate the plunger effectively within Parker Fluid Control housings.

• High-Temperature Resilience: The PTFE seal provides superior thermal stability in steam applications up to 353°F.
• Exact Compatibility: Designed specifically for the 3/4" NPT orifice, ensuring a drop-in fit for 12FS5C2448ACHR and 4D25 series valves.
• System Integrity: Restores the 125 PSI pressure rating to prevent safety shut-off failures or leakage.
• Industrial Durability: Brass construction offers excellent corrosion resistance in aggressive hydronic environments.

Is this kit compatible with other valve brands?
This 12FS5C2448ACHR rebuild kit is precision-engineered specifically for Parker Fluid Control solenoid valves. Cross-referencing dimensions is not recommended; always verify the valve model body before installation.

Can this be used for chemical processing?
While the brass and PTFE materials are chemically resistant to many fluids, this kit is optimized for industrial hot water and steam. Always check your specific media compatibility against Parker's chemical resistance charts.

Does this include the replacement coil?
This is a mechanical repair kit designed for the internal valve components. While it restores the mechanical performance required for an 11-watt coil to function, the electrical coil itself is sold separately.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
