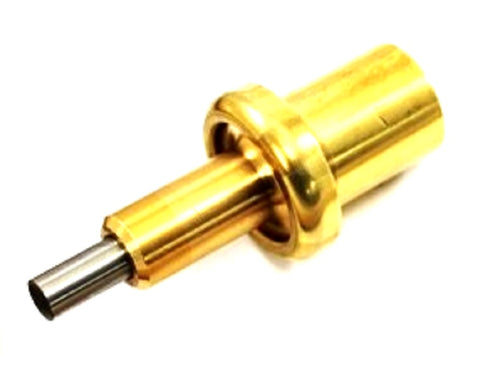

Powers Commercial 390-810 Actuator

The Powers Commercial 390-810 Actuator is a precision-engineered low-temperature wax element actuator designed specifically for the HydroGuard XP series and tempering valve configurations. This SH1432 wax actuator serves as the primary thermal engine for LFMM433, LFMM434, and LFSH1434 mixing valves, providing critical fail-safe modulation by responding to minute temperature shifts within the bronze valve body. With a standard operating range of 60-90°F and a maximum temperature tolerance of up to 200°F, this Powers 390-810 kit ensures consistent outlet temperature control in high-demand domestic water and commercial HVAC systems.

For service technicians and mechanical contractors, this replacement thermal actuator is the industry standard for restoring the accuracy of Siemens Powers mixing valves. The 390810 focuses on precision thermal expansion, preventing temperature creep and protecting downstream users from fluctuations. Designed for direct OEM replacement, this commercial-grade wax actuator minimizes labor time during seasonal maintenance or emergency repairs by offering a drop-in fit with established Powers HydroGuard valve seats and stems.

• Precise Thermal Response: Optimized for low-temp SH1432 specifications to manage water tempering between 60°F and 90°F with minimal hysteresis.
• Industrial Durability: Constructed with high-grade bronze and resilient wax-fill elements to withstand high-duty cycle commercial applications.
• Broad Compatibility: Engineered for use with LFMM-433, LFMM-434, and LFSH-1434 mixing valve series.
• Fail-Safe Design: Provides reliable thermal actuation essential for maintaining system safety parameters in institutional and commercial settings.

• What valve models use the Powers 390-810? This actuator is primarily utilized in Powers HydroGuard XP mixing valves, specifically the LFMM and LFSH series designed for low-temperature tempering.
• Can I use this to replace a standard temperature actuator? No, the SH1432 wax element is calibrated specifically for the 60-90°F range; using it in a standard temperature application will lead to improper valve modulation.
• Does the kit include the full plunger assembly? This part number typically refers to the wax actuator element itself; always verify if your seat or plunger also requires replacement during service.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
