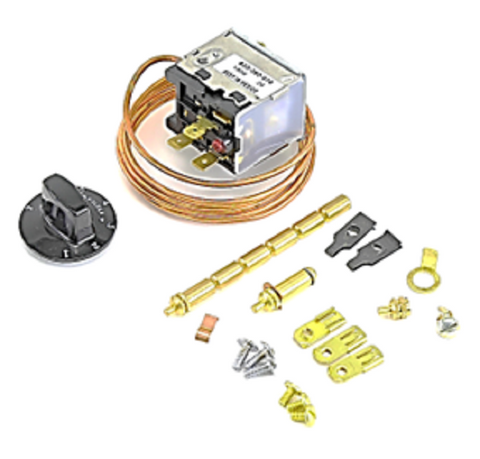

Ranco A22-392 Control

The Ranco A22-392 is a versatile SPDT refrigeration temperature control engineered for high-demand commercial applications. Featuring a 48-inch capillary tube, this constant differential cold control is a high-performance solution for reach-in coolers, vending machines, and beverage dispensers. The unit operates with a fixed setpoint of 31°F OFF and 54°F ON, providing a consistent 23.5°F differential to prevent excessive compressor short-cycling and maintain stable product temperatures.

Designed for easy field installation, the A22-392 includes laser-welded stainless steel bellows for long-term reliability in harsh environments. The Single Pole Double Throw (SPDT) switch configuration allows for flexible wiring to meet various system requirements, supporting line voltage up to 240V AC. This mechanical cold control is widely used as a direct replacement for many OEM parts, ensuring seamless HVACR compatibility with existing mounting brackets and shafts without the need for complex modifications. Its vapor-filled capillary ensures precise sensing, keeping refrigeration systems running at peak efficiency.

• Precise Temperature Regulation: Fixed setpoints of 31°F OFF and 54°F ON ensure consistent thermal management.
• Heavy-Duty Reliability: Features high-amperage contacts and laser-welded bellows for industrial-grade durability.
• Universal Adaptability: The 48-inch capillary and standard 1/4-inch quick-connect terminals simplify refrigeration control replacement.
• Optimized Performance: Engineered to reduce system wear by maintaining a stable, wide differential.

Is the Ranco A22-392 compatible with my commercial freezer?
This control is specifically designed for commercial refrigeration and beverage cooling applications. Always verify the temperature range and differential match your specific equipment needs before installation.

Can I use this for both heating and cooling applications?
The SPDT switch allows the A22-392 to be wired for various functions, but it is primarily tuned for refrigeration cycle management within its 31°F to 54°F operating window.

Does this model have a manual 'OFF' position?
The A22-392 is an adaptable constant differential control and does not feature a manual OFF position on the shaft dial, which is typical for controls used in continuous-operation systems.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
