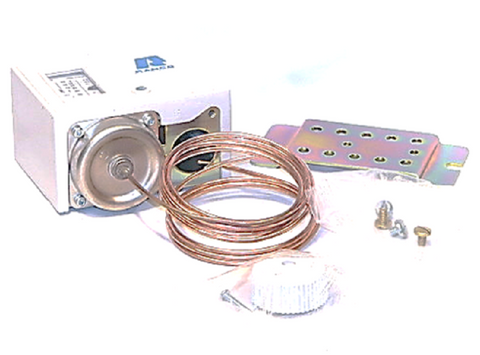

Ranco O10-1416 Mechanical Temperature Control

The Ranco O10-1416 is a heavy-duty single pole, single throw (SPST) mechanical temperature control engineered for medium-temperature refrigeration applications. Designed for reliability in demanding environments, this wide-range cold control features a temperature setpoint range of 0°F to 55°F with an adjustable differential of 3°F to 20°F. The unit utilizes a 72-inch capillary tube with a laser-welded bellows for precise thermal response and installation flexibility. This O-series temperature control is a versatile replacement for various OEM controllers, providing a universal flange mount for quick field installation. Rated for high-current applications, it handles up to 24 FLA at 120V AC, making it a standard choice for walk-in coolers, reach-ins, and beverage dispensers. The robust steel housing ensures long-term durability against vibration and mechanical stress, allowing technicians to maintain tight temperature tolerances and system efficiency without frequent recalibration or component failure.

• Application Versatility: Covers medium-temperature ranges from 0°F to 55°F, reducing truck stock requirements for refrigeration temperature controllers.
• Adjustable Differential: Allows for fine-tuning of compressor cycles between 3°F and 20°F to prevent short-cycling and optimize energy consumption.
• Extended Reach: The 72-inch capillary provides ample length for remote sensing in large cabinets or complex evaporator setups.
• High Electrical Rating: Capable of switching inductive loads directly, suitable for heavy-duty HVACR mechanical controls.
• Proven Reliability: Features the classic Ranco bellows design, known for mechanical precision and resistance to ambient temperature fluctuations.

Can this control replace a fix-differential thermostat?
Yes, the Ranco O10-1416 is an ideal replacement for fixed controls as the adjustable differential allows you to match or improve the original cycling characteristics of the equipment.

What is the best way to mount the 72-inch capillary?
Ensure the capillary is not kinked and has direct contact with the evaporator or sensing air stream. Use the provided universal mounting bracket for secure attachment to the cabinet wall or plenum.

Is the O10-1416 compatible with 240V systems?
Yes, this control is rated for both 120V and 240V AC operations. Always verify the specific FLA and LRA ratings on the Ranco technical datasheet to ensure it meets the compressor motor requirements.
