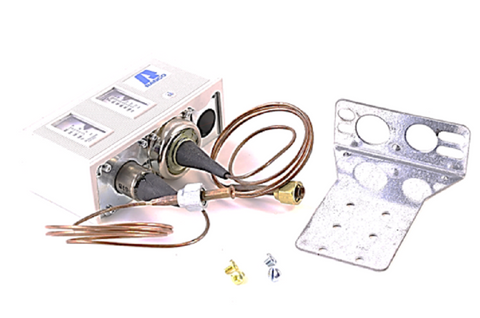

Ranco O12-1594 Pressure Control

The Ranco O12-1594 O-Series Dual Pressure Control serves as a critical HVAC safety switch designed for commercial refrigeration systems requiring precise low-pressure and high-pressure monitoring. This dual pressure control features a low-pressure range of 10" WC to 100 PSI and a fixed high-pressure cutout to ensure compressor protection against system abnormalities. Equipped with 36-inch capillary tube connections, this SPDT switch offers installation flexibility in tight mechanical rooms. The rugged NEMA 1 enclosure protects the internal contact mechanism, making it a reliable choice for refrigeration line set monitoring and condenser fan cycling applications. When calibrating the Ranco O12-1594, contractors benefit from the visible scale that allows for quick verification of setpoints and differentials without specialized gauges. This control is engineered for industrial HVAC maintenance, providing a universal solution for various refrigerant types where high-load switching and durability are non-negotiable.

• Enhanced System Reliability: Combines high and low pressure monitoring into a single refrigeration control to reduce potential leak points and wiring complexity.
• Field-Proven Durability: Features a robust electrical switch mechanism capable of handling high inductive loads directly without external relays in many configurations.
• Versatile Installation: The 36-inch capillary tube allows for mounting away from high-vibration areas, extending the service life of the pressure switch.
• Simplified Diagnostics: The clear internal scale and adjustable settings allow HVAC technicians to troubleshoot pressure-related issues rapidly.

Common Questions

How do I wire the Ranco O12-1594 for a low-pressure cutout?
The SPDT contact configuration allows for versatile wiring. For a standard low-pressure cutout, use the appropriate terminals to ensure the circuit opens on a drop in suction pressure, protecting the compressor from vacuum operation.

Is this control compatible with high-pressure refrigerants?
This dual pressure control is designed for a wide range of standard refrigerants. Always verify that your system’s maximum operating pressures align with the 100 PSI low-side limit and the fixed high-side safety limit of this specific Ranco O-Series model.

Can the capillary tube be shortened if it is too long?
No, never cut or kink the capillary tube. Excess tubing should be carefully coiled and secured to prevent vibration fatigue, which can lead to refrigerant leaks and control failure.
