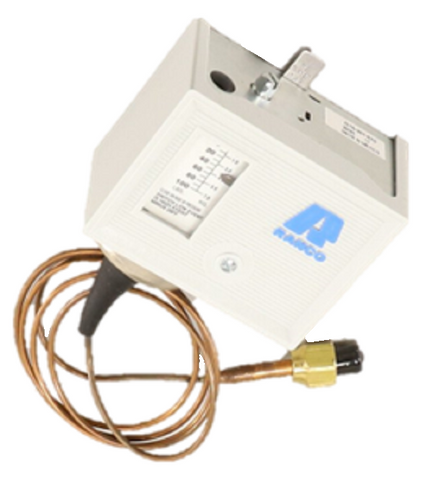

Ranco O16-261 Pressure Control

Ranco O16-261 Pressure Control – SPDT Low Pressure Manual Reset Switch with 48" Capillary

The Ranco O16-261 Pressure Control is a durable and precise single-function low-pressure control switch designed for commercial HVAC and refrigeration applications. Featuring a pressure range of 10" Hg to 100 psi and a 10 psi adjustable differential, this manual-reset SPDT (Single Pole Double Throw) switch provides reliable pressure monitoring and control.

Equipped with a 48-inch capillary and a 1/4" SAE flare nut connection, the O16-261 offers flexible installation options with its universal mounting and compact design. Its robust construction includes a NEMA 1 enclosure with a non-conductive cover and a front-located captive cover screw for easy maintenance. The Super Cap® capillary protection system, laser-welded bellows, and vibration cone ensure extended durability and vibration resistance for long-lasting performance.

Key Features:

• Brand: Ranco

• Model: O16-261

• Switch Type: SPDT (Single Pole Double Throw)

• Pressure Range: 10" Hg (vacuum) to 100 psi (low pressure)

• Differential: Adjustable 10 psi

• Reset Type: Manual

• Capillary Length: 48 inches

• Connection: 1/4" SAE Flare Nut

• Enclosure: NEMA 1 with non-conductive cover

• Construction: Heavy-duty plated steel frame, laser-welded bellows, vibration cone

• Compatibility: Supports new refrigerants including R-410A, R-134A, and legacy refrigerants such as R-12, R-22, R-502

• Series: O Series Single-Function Control

Designed for commercial applications, the Ranco O16-261 ensures accurate pressure control and protection for your refrigeration and HVAC systems. Its rugged design and advanced features make it a trusted choice for maintaining system safety and efficiency.

Choose the Ranco O16-261 Pressure Control for reliable, precise, and durable low-pressure control in your HVAC and refrigeration equipment.
