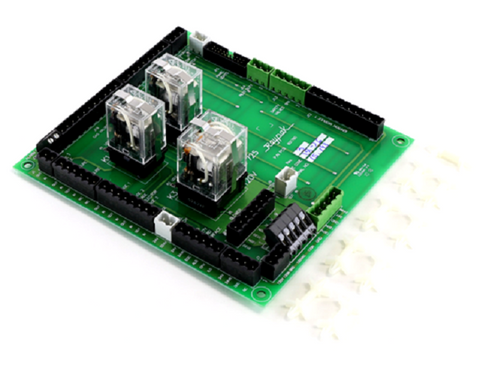

Raypak 009626F Circuit Board

The Raypak 009626F Circuit Board is an OEM CPW PC Circuit Board engineered for Raypak Hi Delta commercial and industrial water heaters and boilers, specifically models 922A through 2342A. As a central point wiring (CPW) component, this board is the primary interface for managing critical HVAC system diagnostics, ignition sequences, and combustion safety protocols. For technicians troubleshooting a Raypak furnace control board failure, this part provides the logic required to interpret sensor data, including temperature fluctuations and water flow rates, to maintain steady-state efficiency. It is a direct fit for boiler replacement parts in high-demand environments, featuring clearly labeled terminals to simplify complex field wiring and minimize potential errors during installation. Built to withstand operational temperatures ranging from -40°C to 85°C, this digital control board ensures the Raypak 009626F maintains system stability and prevents lockout conditions in residential or commercial mechanical rooms. Use this genuine printed circuit board to resolve communication issues between the burner assembly and safety limits.

• Universal Compatibility: Specifically designed for the Raypak Hi Delta series (models 302A-1262B and 922A-2342A) for seamless integration.
• Centralized Distribution: Acts as a Central Point Wiring hub, consolidating connections for pumps, fans, and sensors to reduce wiring complexity.
• Advanced Diagnostics: Facilitates real-time monitoring of system parameters, which is essential for accurate troubleshooting.
• Industrial-Grade Build: Constructed with high-quality PCB materials capable of handling the high-heat cycles typical of Raypak heating systems.

What are the signs of a failing Raypak 009626F board?
Technicians often encounter a "BD1" fault code, which indicates a main processor failure. Other symptoms include the system failing to initiate the ignition sequence, intermittent power loss to the gas valve, or the display remaining blank despite verified 24V input at the transformer.

Is this board compatible with pool and spa heaters?
Yes, this Raypak 009626F is used in select Hi Delta pool and spa heater models. Always cross-reference the manufacturer part number with your unit’s data plate to ensure specific configuration compatibility.

Does this board require specialized tools for installation?
Standard hand tools like Phillips and slotted screwdrivers are sufficient, but we recommend using a multimeter to verify voltage and ground continuity to prevent damage to the new circuitry.
