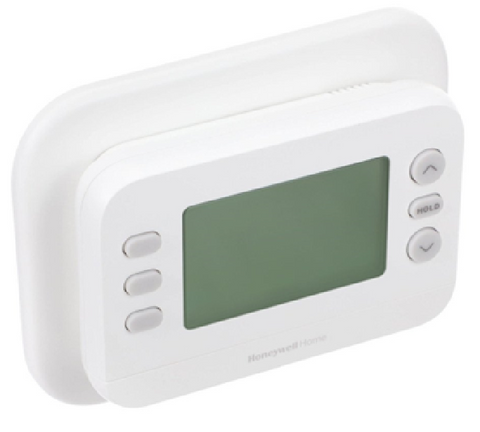

Resideo TH2210U4005 Thermostat

FocusProP200ProgTstat 2/ht/2cl

TH2210U4005 is the cross of PHWT-A150H

Resideo TH2210U4005 Thermostat – FocusPRO® P200 Programmable Thermostat (2H/1C)

The Resideo TH2210U4005 FocusPRO® P200 Thermostat is a professional-grade, programmable thermostat engineered for reliability, flexibility, and ease of installation. Designed to support a wide range of residential HVAC systems, this thermostat is ideal for both heat pump and conventional heating and cooling applications.

With an intuitive user interface and a large, easy-to-read display, the FocusPRO® P200 makes programming and daily operation simple for homeowners while providing installers with fast setup and upgrade options. Its flexible scheduling capabilities and advanced customization features deliver precise comfort control and energy efficiency.

Key Features & Benefits

• Broad system compatibility – Supports 2-stage heat / 1-stage cool heat pump systems and 1-stage heat / 1-stage cool conventional systems

• Flexible scheduling options – Choose 5-1-1, 5-2, 7-day, or non-programmable operation

• Large, clear display – Easy-to-read screen with optional always-on backlight when hardwired

• User customization – Adjustable display settings, filter change reminders, and configurable heat low limit (default 40°F, adjustable to 32°F for garage applications)

• Intuitive interface – Simplifies setup, programming, and everyday use

• Private label ready – Snap-on accent piece allows contractor branding

• Easy installation & upgrades – Uses the UWP® universal wall plate for quick, clean installations

• Outdoor sensor compatible – Works with wired outdoor sensors

• Fan lockout option – Prevents fan operation during cooling cycles if required

Ideal Applications

• Residential HVAC retrofit or new installations

• Heat pump and conventional heating/cooling systems

• Contractors seeking reliable, easy-to-install thermostats

• Homeowners who want programmable comfort with optional scheduling

Product Specifications

• Manufacturer: Resideo

• Part Number: TH2210U4005

• Series: FocusPRO® P200

• Thermostat Type: Programmable

• System Compatibility: 2H/1C Heat Pump, 1H/1C Conventional

• Warranty: 5-Year Limited Warranty

The Resideo TH2210U4005 FocusPRO® P200 Thermostat delivers dependable performance, flexible scheduling, and contractor-friendly installation, making it a smart choice for modern residential HVAC comfort control.
