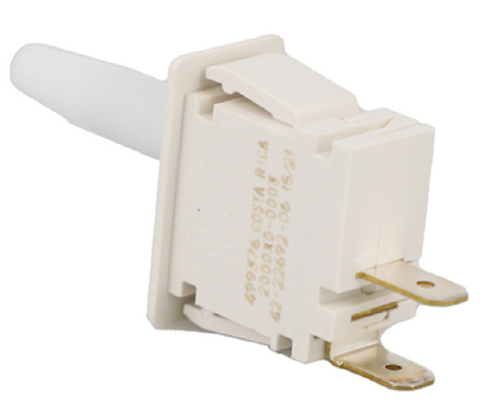

Rheem-Ruud 42-22692-06 Door Switch

The Rheem-Ruud 42-22692-06 Door Switch is a critical safety component designed for precise interlock switch replacement in furnace and air handler cabinets. This SPST-NO (Single Pole Single Throw - Normally Open) pushbutton switch serves as an electrical safety disconnect, instantly interrupting the 120V or 230V line voltage circuit when the blower access panel is removed. Rated for a significant 13.8 Amp current load, this HVAC blower door safety switch ensures that high-voltage components like the blower motor and ignitor cannot energize during service, meeting stringent furnace safety protocol requirements.

The 42-22692-06 features standardized 1/4-inch quick-connect terminals for rapid integration into existing wiring harnesses. Its durable pushbutton actuation mechanism is built to withstand the high-cycle demands of seasonal maintenance. Engineering specifications include a 1-1/8 inch mounting hole height and a 9/16 inch width, providing a direct-fit solution for many Rheem, Ruud, and WeatherKing gas furnaces. By replacing a mechanical furnace door switch that has suffered from carbon tracking or spring fatigue, technicians can resolve intermittent "no-start" conditions and ensure reliable system firing once the panels are secured.

• Universal Compatibility: Direct OEM replacement for Rheem, Ruud, WeatherKing, and Thermal Zone units, replacing legacy part number 42-22692-01.
• High Electrical Capacity: Rated for up to 13.8A at 120/230VAC, making it suitable for high-demand residential blower systems.
• Reliable Safety Interlock: Ensures the system remains de-energized during maintenance, protecting both the technician and sensitive control boards.
• Precision Fit: Standardized mounting dimensions for a snap-in installation without the need for cabinet modifications.

• Why is my furnace not starting even with the door closed? If the Rheem door switch plunger is worn or the internal contacts are pitted, it may fail to complete the circuit. Testing for continuity across the 1/4-inch terminals while the button is depressed will confirm if the switch requires replacement.
• Can this switch handle both 120V and 230V systems? Yes, the 42-22692-06 is technically rated for dual voltage applications up to 230VAC, covering most residential gas furnaces and electric air handlers.
• Is this an NO or NC switch? This is a Normally Open (NO) switch, meaning the circuit remains open (off) until the door is physically closed to depress the button and "close" the circuit.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
