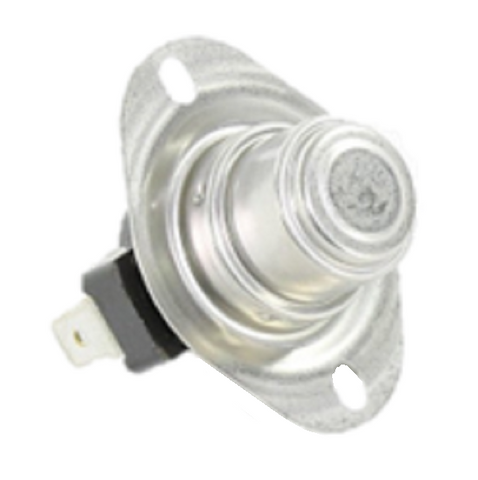

Rheem-Ruud 47-23610-21 Limit Switch

Controls, Temperature, 155 degrees F Fixed Close Temperature, 175 degrees F Fixed Open Temperature, SPST Normally Closed Switch, Auto Reset, General Purpose Limit Switch (Red/White Color Coded)

Rheem-Ruud 47-23610-21 Limit Switch – 155°F/175°F Auto Reset, SPST, General Purpose

The Rheem-Ruud 47-23610-21 Limit Switch is a reliable general-purpose temperature control switch designed for HVAC applications. Engineered to provide accurate temperature monitoring, this limit switch ensures safe operation by controlling the system based on predefined temperature limits. Ideal for furnaces, boilers, and other heating equipment, it helps protect against overheating while maintaining system efficiency.

Key Features & Benefits:

• Genuine Rheem-Ruud OEM limit switch

• Fixed Close Temperature: 155°F, Fixed Open Temperature: 175°F

• SPST (Single Pole Single Throw) Normally Closed Switch for dependable control

• Auto-reset operation for continuous, safe performance

• Red/White color-coded for easy identification

• Maximum Ratings: 25A, 230VAC

• Quick-connect terminals (1/4 in.) for easy installation

• Designed for flanged airstream mounting

• Enclosed disc face for durability and long service life

• Nominal temperature difference: 20°F with ±5°F tolerance

Product Specifications:

• Manufacturer: Rheem-Ruud

• Part Number: 47-23610-21

• Product Type: Limit Switch / Temperature Control

• Switch Type: SPST, Normally Closed

• Reset Mode: Auto

• Mounting Depth: 25/32 in.

• Poles: 1

• Category: General Purpose

The Rheem-Ruud 47-23610-21 Limit Switch is an essential component for maintaining safe and efficient operation of heating systems. As a direct OEM replacement, it ensures proper fit, reliable temperature control, and long-lasting performance.

Order today to restore safety and reliable operation to your HVAC system.
