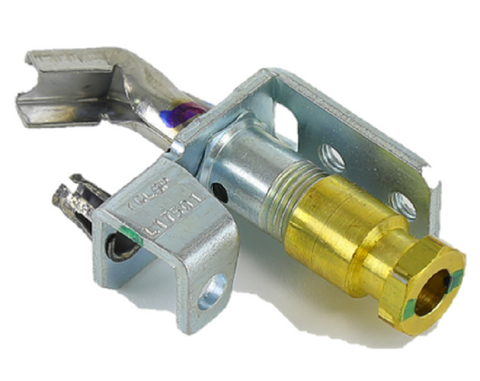

Rheem-Ruud 62-22864-02 Pilot Assembly

The Rheem-Ruud 62-22864-02 Pilot Assembly is a direct OEM replacement component engineered for precision ignition in residential gas furnaces and heating units. This assembly features a robust natural gas pilot burner designed to maintain a stable flame pattern for consistent thermocouple or thermopile heating. Designed for compatibility with specific Rheem, Ruud, and WeatherKing furnace models, this assembly ensures the safety circuit remains energized during the heating cycle. To prevent nuisance lockouts, the unit utilizes a high-grade pilot orifice and a durable electrode configuration for reliable sparking. When troubleshooting furnace ignition failure or a lazy pilot flame that won't stay lit, replacing the entire 62-22864-02 assembly ensures the flame sensor signal and gas flow meet factory specifications. This genuine part maintains the integrity of the gas valve manifold assembly, providing the necessary thermal feedback to prevent unburned gas accumulation during startup sequences.

• OEM Compatibility: Precision-fit for Rheem and Ruud heating systems to replace worn or carbon-fouled pilot burners.
• Stable Flame Geometry: Engineered to provide a consistent flame for accurate thermocouple millivolt output.
• Integrated Bracket Design: Ensures proper alignment with the main burner for seamless crossover ignition.
• Corrosion Resistance: Fabricated from high-temperature alloys to withstand the harsh environment of the combustion chamber.

Common Questions:

Why is my furnace pilot flame lifting or blowing out?
This is often caused by a restricted pilot orifice or incorrect gas pressure. Replacing the 62-22864-02 assembly ensures clean gas delivery and a stable flame that resists drafting.

Does this assembly include the thermocouple?
Yes, this complete assembly typically integrates the necessary sensing components to provide feedback to the integrated furnace control board.

Is this pilot assembly compatible with Propane (LP) units?
This specific model is configured for natural gas systems. If converting to LP, a specific orifice change is required to match the higher BTU density of propane.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
