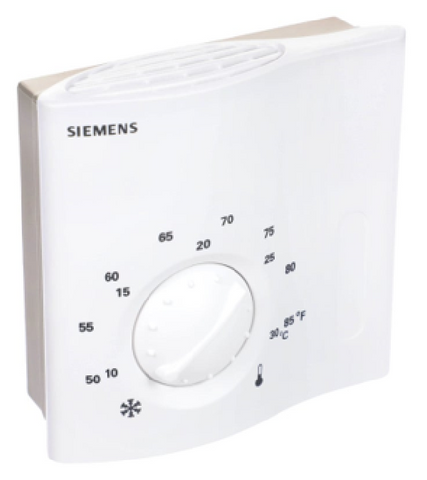

Siemens Building Technology RAA20U Thermostat

The Siemens RAA20U Thermostat is a high-performance mechanical solution designed for precision temperature control in heating only or cooling only applications. Functioning as a two-wire, gas diaphragm-based room thermostat, this unit offers a reliable two-position (on-off) control algorithm suitable for both 24V low voltage and line voltage systems (24 to 277 Vac). As a veteran technician knows, the Siemens RAA20U is the direct replacement for 1A10-651, making it the industry standard for upgrading or repairing existing HVAC infrastructures. Featuring an exposed setpoint knob and a dual Fahrenheit/Celsius scale, it provides immediate manual adjustability within a 50°F to 85°F range. The mechanical design incorporates adjustable setpoint limit stops to prevent excessive energy consumption in commercial environments like schools or storage rooms. For those performing a swap, this SPDT thermostat ensures seamless compatibility with zone valves, thermal actuators, and fans, all housed in a durable NEMA 1 enclosure.

• Universal Compatibility: Operates efficiently across 24V to 277V, making it a versatile choice for residential and light industrial systems.
• Direct Retrofit: Engineered specifically as the direct replacement for 1A10-651, simplifying field service and reducing installation time.
• Precision Control: Utilizes an environmentally friendly gas diaphragm for accurate sensing and two-point control.
• Tamper Management: Includes integrated setpoint limiters to lock in temperature ranges and optimize energy efficiency.
• Flexible Mounting: Compatible with standard electrical wall boxes or direct drywall installation via the ARG70 wall plate adapter.

Common Questions

Is the Siemens RAA20U compatible with both heating and cooling simultaneously?
No, this model is designed for two-pipe systems for either heating only or cooling only functionality. For combined control, alternative Siemens RAA series models should be specified.

Can I use this for line voltage baseboard heaters?
Yes, it is rated for line voltage applications up to 277 Vac, though you should always verify the FLA and LRA ratings of your specific equipment against the thermostat's 6A resistive limit.

What is the benefit of the gas diaphragm over electronic sensors?
The gas diaphragm provides a robust, mechanical thermal response that requires no power for the sensing element itself, ensuring longevity in environments where digital components might fail.
