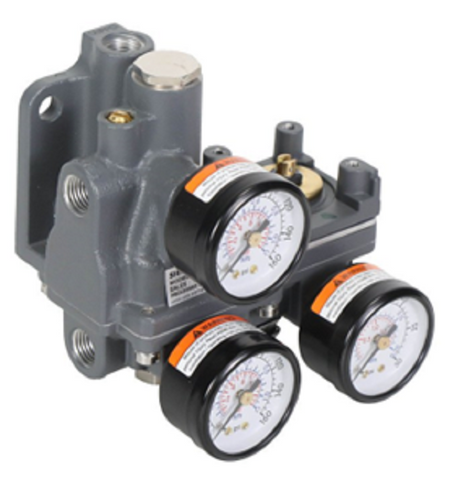

Siemens Industrial Controls 74G Valve Positioner – High-Accuracy Pneumatic Valve Control with Gauges

The Siemens Industrial Controls 74G Valve Positioner is a reliable, high-performance solution designed to deliver precise valve positioning in demanding industrial environments. Equipped with three easy-to-read gauges, this versatile positioner ensures accurate monitoring and control for a wide range of pneumatic actuator applications.

Engineered for exceptional dynamic performance, the Model 74 Series uses a piston or diaphragm-driven actuator to accurately position valves according to control instrument signals—and maintain that position even under fluctuating conditions. Its advanced design minimizes the effects of supply pressure variations, reducing the need for separate pressure regulators and improving system efficiency.

This two-stage, pilot-operated valve positioner features a dual-output booster system that operates in a “push-pull” configuration. When one booster supplies air, the other exhausts, enabling fast, responsive, and stable actuator movement. For single-acting, spring-loaded actuators, the unused pilot-booster port can be easily plugged, offering additional installation flexibility.

Key Features & Benefits

• Includes 3 Gauges for clear and convenient monitoring

• 0–30 PSI Gauges, Input Pressure up to 160 PSI Max

• Supports Double-Acting or Single-Acting Service, ideal for various actuator types and environments

• Field-Reversible Design reduces downtime and simplifies maintenance

• Wide Adjustable Stroke Range (1/4" to 48") for maximum application versatility

• High-Capacity Pilots deliver superior frequency response and fast stroking speeds across actuator sizes

• Negative Feedback Pilot Circuit ensures exceptional stability, achieving push-pull gain ratios over 900:1 with a 100 psig supply

Applications

The Siemens 74G Valve Positioner is ideal for industrial process control systems, including manufacturing, chemical processing, water treatment, energy facilities, and any application requiring accurate pneumatic valve actuation.
