Sporlan 040305-05 Valve

A7-A 3/8"x3/8"ODF CnstntPrsVlv

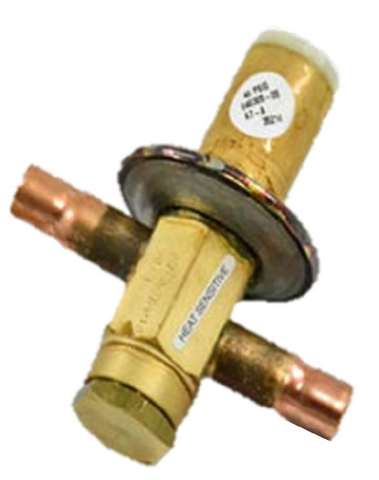

Sporlan 040305-05 A7-A 3/8"x3/8" ODF Automatic Expansion Valve (AXV)

Ensure precise refrigeration system performance with the Sporlan 040305-05 A7-A Automatic Expansion Valve (AXV). Designed for reliable pressure regulation, this high-quality valve is compatible with R-134A, R-22, and R-404A refrigerants and features a 0–90 psig adjustment range, making it ideal for a variety of commercial and industrial applications.

Key Features:

• Valve Type: A7-A Automatic Expansion Valve

• Connections: 3/8" ODF inlet and outlet

• Refrigerant Compatibility: R-134A, R-22, R-404A

• Construction: Durable brass, copper, and stainless steel materials

• Adjustment Range: 0–90 psig for precise system control

• Operating Pressure: Up to 500 psig high side, 225 psig low side

Applications:

• Ice cream and slush machines (A1, A2, A3, A4, AS, A7, AT)

• Ice machines (A1, A2, A3, A4, AS)

• Hot gas bypass, freeze protection, and refrigerant reclaim systems

• PTAC/PTHP units and high-cycle refrigeration systems

Markets Served:

• Air Conditioning

• Food Retail Refrigeration

• Transportation Refrigeration

• Industrial Food Storage

Upgrade your refrigeration system with the Sporlan 040305-05 A7-A AXV for reliable performance, precise pressure control, and long-lasting durability.
