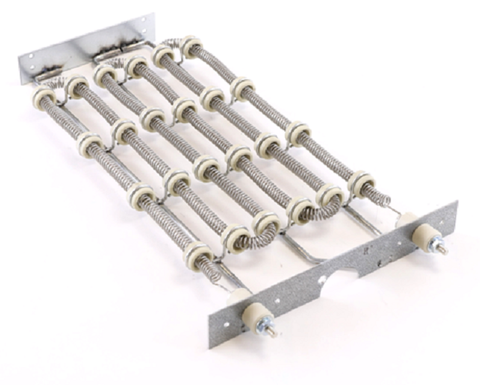

Trane ELM0644 Heating Element

For service technicians addressing cold-blow issues in 208/240V air handlers, the Trane ELM0644 Heating Element is a direct OEM replacement engineered for precise thermal management. This 3.84KW heating element delivers a consistent output of approximately 13,118 BTUs, ensuring that duct temperatures meet design specifications during the auxiliary heat cycle. Designed specifically for integration with Trane residential air handlers and electric heat kits, this component features high-grade resistive alloy wiring supported by ceramic insulators to prevent short-circuiting under high-static pressure conditions. Utilizing an OEM Trane ELM0644 replacement part ensures the unit maintains its original safety listings and internal high-limit switch calibration, preventing the nuisance tripping often associated with generic aftermarket elements.

Key Benefits:

• Precise 3.84KW Output: Engineered to provide the exact heating capacity required for specialized Trane heat kits without overloading the circuit breaker.
• OEM Structural Integrity: Features heavy-duty heating element coils and robust frame construction to withstand thermal expansion and contraction cycles.
• System Compatibility: Seamlessly drops into Trane and American Standard air handler units, ensuring correct airflow clearance and terminal alignment.
• Efficient Heat Transfer: Optimized coil density promotes maximum heat exchange, improving the overall energy efficiency of the auxiliary heating stage.

Common Questions:

How do I verify if the ELM0644 is the correct element for my air handler?
Always check the data plate on the heater kit assembly (often found behind the blower access panel). The Trane ELM0644 is typically found in 4–5kW heat kit configurations where the nominal rating is 3.84KW at 240V.

What are the symptoms of a failing heating element?
Technicians should look for open circuits during a continuity test, visible breaks in the resistive wire, or scorching on the insulators. If the air handler is blowing cold air during a call for heat (W1/W2), the element is likely compromised.

Can I use this element in other furnace brands?
This HVAC heater replacement is a factory-specified part for Trane and American Standard equipment. Using it in non-compatible brands may lead to improper fitment and potential safety hazards due to different airflow and limit-switch requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
