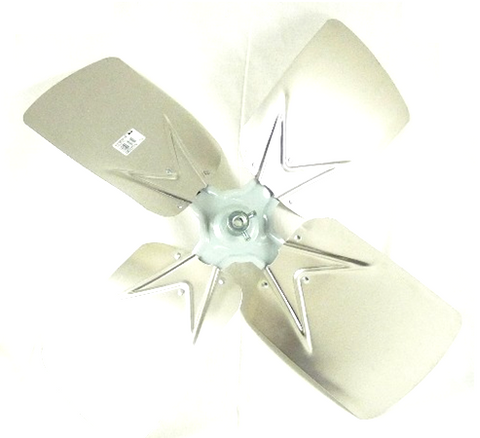

Trane FAN1532 Fan Blade

The Trane FAN1532 Fan Blade is a heavy-duty 26-inch condenser fan blade engineered for high-static pressure applications in commercial and residential HVAC systems. Featuring a 32-degree pitch and 4-blade aluminum construction, this component is designed for clockwise (CW) rotation to maintain optimal airflow across the condenser coils. The 1/2-inch bore diameter is positioned on the intake side, ensuring a precise fit on standard HVAC blower motors. As a critical OEM replacement part, the FAN1532 ensures system efficiency by preventing head pressure spikes and reducing mechanical strain on the compressor. This Trane replacement fan blade provides the necessary rigidity to prevent blade flexing during high-RPM operation, making it a reliable solution for technicians performing field repairs on Trane and American Standard condensing units.

• Precision Airflow: The 32-degree pitch is calibrated for maximum CFM delivery in high-ambient conditions.
• OEM Compatibility: Direct-fit 1/2" bore ensures seamless integration with existing motor shafts without modifications.
• Durable Construction: High-grade metallic blades resist corrosion and maintain balance over long duty cycles.
• Optimized Cooling: Four-blade configuration balances noise reduction with high-efficiency heat rejection.

What is the correct rotation for the Trane FAN1532?
This blade is designed for Clockwise (CW) rotation. Always verify the rotation from the lead end of the motor to ensure proper airflow direction across the coil.

Will this blade fit onto a 5/8" motor shaft?
No, this specific model features a 1/2-inch bore. If your motor has a 5/8" shaft, an adapter or a different part number is required to ensure a secure hub fit.

Can this be used in draw-through or blow-through configurations?
This fan blade is specified for intake-side mounting on the hub, typically utilized in standard vertical discharge condensing units where the motor is mounted below the blade.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
