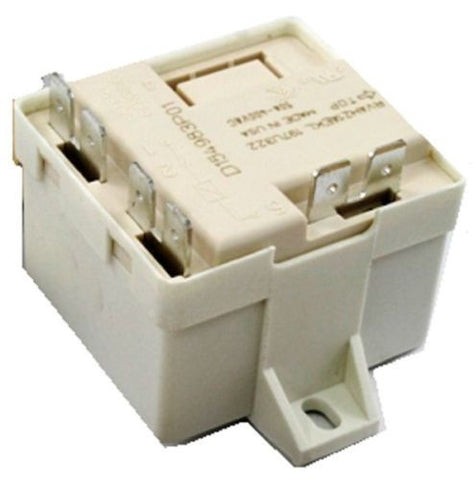

Trane RLY3148 Start Relay

The Trane RLY3148 Start Relay is a high-capacity potential relay engineered for heavy-duty HVAC applications. Rated for 383V and 50A, this single-phase component is critical for managing the initial inrush current during compressor start-up. By temporarily engaging the start winding and disengaging once the motor reaches sufficient back EMF, it protects the compressor from electrical stress and reduces the risk of locked rotor amps (LRA). This OEM start relay is a direct replacement for RLY03148 and D154983P01, commonly found in Trane and American Standard air conditioners and heat pumps. As a veteran-grade HVAC replacement part, it ensures the precise timing required to prevent contact welding or short-cycling in industrial and residential systems. For technicians performing compressor troubleshooting, this robust potential relay provides the reliability needed for high-demand motor start functions.

Key Benefits:

• High Amperage Capacity: Rated for up to 50 amps, providing heavy-duty switching for large compressor motors.
• System Longevity: Helps minimize thermal stress on compressor windings by ensuring clean, timely disconnects of the start circuit.
• OEM Compatibility: Designed specifically for Trane equipment to maintain original factory specifications and fitment.
• Voltage Accuracy: Optimized for 383V systems to ensure the relay coil reacts accurately to back EMF for consistent operation.

Common Questions:

What are the signs of a failing RLY3148 relay?
Technicians often report clicking noises, the compressor humming but failing to start, or the system tripping the breaker due to locked rotor amps if the relay fails to engage the start capacitor.

How do I test the Trane RLY3148 with a multimeter?
Disconnect power and check for continuity between the normally closed terminals (usually 1 and 2). A reading of infinity indicates the contacts are stuck open, preventing the start circuit from energizing.

Can this relay replace a standard hard start kit?
This is an OEM start relay designed for specific Trane circuit configurations. While it functions similarly to the relay in a hard start kit, it should only be used as a direct replacement for the specified Trane part numbers to ensure control board compatibility.
