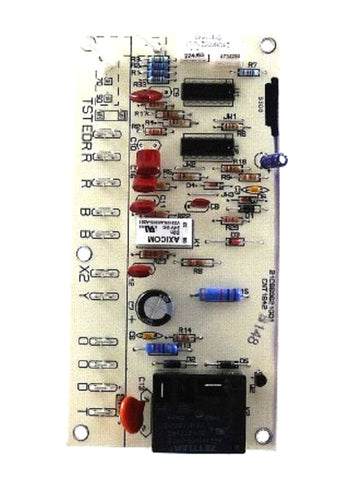

Trane CNT1642 Defrost Timer

Optimize your heat pump’s performance with the Trane CNT1642, a heavy-duty 24V defrost timer engineered for precise frost management in residential and light commercial HVAC systems. This OEM Trane defrost control is a critical component for preventing excessive ice accumulation on outdoor coils, ensuring consistent airflow and protecting the compressor from liquid slugging during low-ambient operations. Designed for field-proven reliability, the CNT1642 features user-selectable terminal jumpers, allowing technicians to configure 50, 70, or 90-minute defrost intervals based on regional humidity levels and system requirements. If no jumper is installed, the logic defaults to a 90-minute cycle to maintain standard operational safety.

This solid-state defrost board is a direct-drop replacement for legacy Trane and American Standard units, particularly those requiring an EDR relay interface to bypass low-pressure controls during the defrost cycle. The CNT1642 utilizes a 1000-ohm resistor for outdoor temperature sensing, providing a stable 24V signal to the switch-over valve and outdoor fan relay. Its compact footprint and standardized spade terminals facilitate a streamlined HVAC defrost timer installation, minimizing downtime for your customers. By accurately regulating heat pump defrost cycles, this controller maximizes SEER efficiency and prevents unnecessary auxiliary heat engagement, making it a staple for any service truck specializing in Trane equipment.

• Selectable Timing: Easily adjust between 50, 70, and 90-minute intervals to match local climate demands.
• OEM Compatibility: Genuine Trane replacement part ensures perfect fitment and logic matching for CNT1642 and legacy models.
• Energy Efficiency: Prevents unnecessary defrosting, reducing wear on the switch-over valve and lowering utility costs.
• Enhanced System Protection: Mitigates frost-related airflow restrictions to maintain optimal refrigerant pressures.
• Rugged Reliability: Built with high-quality 24V control circuit components to withstand harsh outdoor environments.

How do I change the defrost frequency on the CNT1642?
The timing is adjusted by moving the jumper across the 50, 70, or 90-minute pins on the control board. Ensure the system is powered down before making adjustments.

Does this board replace the CNT1152 model?
Yes, the Trane CNT1642 can be used in place of the CNT1152, as it includes the necessary EDR terminal required for advanced configurations.

What happens if I don't use a jumper on the timing pins?
The board will default to the 90-minute run time setting, which is the standard safety interval for most heat pump applications.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
