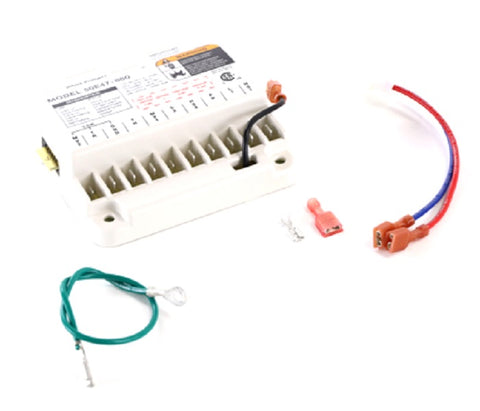

Trane CNT3776 Ignition Module

The Trane CNT3776 is a professional-grade 24V 3TFI ignition module engineered for precise combustion control in residential and light commercial heating systems. Utilizing a "Three-Try-For-Ignition" (3TFI) sequence, this OEM replacement control board ensures reliable burner startup and consistent performance even in demanding environments. It is designed to manage timing for the pilot gas valve, main valve, and igniter while monitoring flame rectification to maintain system safety. This furnace ignition control is a direct replacement for legacy part numbers like CNU-9125 and is compatible with a wide range of Trane furnace models, including the CST and CSX series. By integrating a transformer-isolated output, the module effectively prevents ground faults and arc-faults, protecting the primary electronics. For technicians diagnostic routines, the onboard LED status indicator provides rapid troubleshooting feedback for common faults like lockout or flame loss. Maintaining HVAC system compatibility with genuine Trane HVAC parts is critical for ensuring high-efficiency operation and long-term reliability in the field.

• Enhanced Start-Up Reliability: The 3TFI sequence allows for up to three ignition attempts, significantly reducing nuisance service calls during cold starts.
• Universal 24V Integration: Standard voltage requirements make this module compatible with most traditional 24 VAC systems and 3-stage gas valves.
• Advanced Fault Protection: Built-in transformer isolation mitigates risks of electrical arcing and ground-loop interference.
• Real-Time Diagnostics: Features an integrated LED status light to help contractors quickly identify and resolve ignition failures or pressure switch issues.

What does the 3TFI designation mean for system operation?
It stands for "Three-Try-For-Ignition," meaning the module will attempt to light the burner three times before entering a safety lockout mode if no flame is sensed.

How do I troubleshoot a 3-blink error code on this module?
A 3-blink code typically indicates a pressure switch fail-to-close or a flame rollout switch trip. Verify inducer motor operation and venting before replacing the module.

Can the CNT3776 replace older control boards like the CNU-9125?
Yes, the CNT3776 is the official OEM successor and is designed as a direct drop-in replacement for the CNU-9125 and several other legacy 3-stage ignition controls.
