Trane SEN0432 Flame Sensor

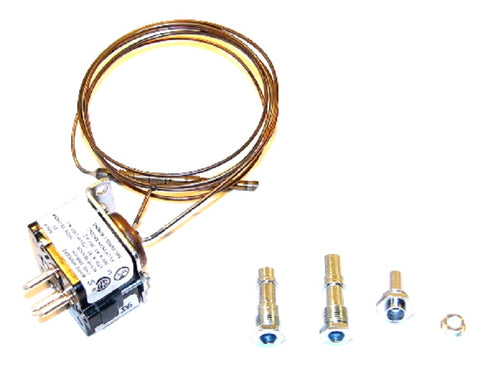

The Trane SEN0432 is an OEM mercury flame sensor designed for high-precision flame rectification within residential and commercial gas furnaces. This critical safety component features a 48-inch lead length, providing the necessary reach for complex burner manifold configurations common in older high-efficiency Trane and American Standard units. Equipped with a 3-pin plug-in interface, the SEN0432 ensures a secure electrical connection to the integrated furnace control board, eliminating the signal noise often associated with universal spade-terminal sensors. As a mercurial flame detection device, it utilizes a mercury-filled glass bulb that shifts state upon heat exposure, completing the circuit to verify ignition and allow the gas valve to remain energized. For technicians troubleshooting intermittent ignition failure or short cycling, this original equipment part provides the exact millivolt response required by the system logic, preventing the nuisance lockouts frequent with aftermarket equivalents.

• Direct OEM Replacement: Ensures exact compatibility with Trane and American Standard logic controllers without the need for harness modification.
• Extended 48-Inch Reach: The long-format lead allows for flexible routing around heat exchangers and draft inducers.
• Mercury-Reliability: Utilizes proven mercury-switch technology for consistent flame verification in high-temperature environments.
• Plug-and-Play Installation: The 3-pin plug-in connector prevents cross-wiring and ensures a moisture-resistant seal at the control board.
• Enhanced Safety: Provides rapid shut-off response to prevent unburned gas accumulation during combustion failures.

What are the symptoms of a failing Trane SEN0432?
Common indicators include the furnace shutting down after only 2–5 seconds of burner operation, repetitive clicking from the gas valve relay, and diagnostic flash codes on the control board indicating "flame sensed out of sequence" or "loss of flame signal."

Can I clean this mercury flame sensor like a standard flame rod?
Unlike standard stainless steel flame rods, the SEN0432 features a mercury sensing bulb. Cleaning the external surface with a cloth is acceptable, but avoid abrasive materials like steel wool or sandpaper, as damaging the bulb will cause permanent failure and potential mercury leakage.

Is the 3-pin connector compatible with all Trane furnaces?
The 3-pin plug is specific to units designed for this mercurial sensor. Always verify the pin configuration on your existing harness before installation, as some newer models have transitioned to single-wire rectification rods.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
