Trane SHF1503 Shaft

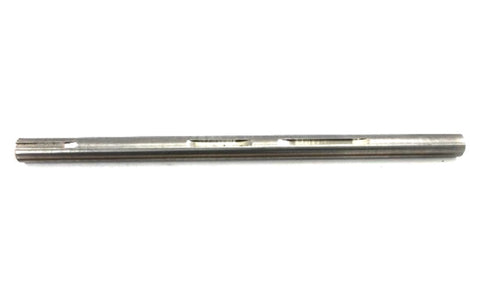

The Trane SHF1503 (also referenced as SHF01503) is a precision-engineered 1 x 18.295 shaft designed for blower assemblies and fan wheel operation in commercial HVAC systems. This Trane replacement part features a standard 1-inch diameter and a total length of 18.295 inches, ensuring a direct mechanical fit for high-capacity Trane rooftop units and air handlers. For contractors performing blower motor shaft replacement, this component provides the exact tolerances required to maintain balance and reduce vibration in the drive assembly. Constructed from high-strength steel, the Trane fan shaft is critical for restoring HVAC belt drive system integrity and preventing bearing wear associated with misaligned or bent shafts. This OEM component is frequently utilized in Trane Precedent and Voyager series equipment, including common configurations like the TCD120 and TCD102 models, ensuring stable rotational torque and long-term performance under high static pressure conditions.

Key Benefits

• Direct OEM Compatibility: Engineered as a drop-in HVAC shaft replacement for specific Trane packaged units, ensuring perfect alignment with existing bearings and blower wheels.
• Precision Machining: The 1 x 18.295 shaft dimensions prevent eccentric rotation, which protects blower motor bearings and extends the life of the belt drive.
• High Torque Support: Fabricated to handle the mechanical stresses of high-tonnage commercial HVAC maintenance and constant fan operation.

Common Questions

What Trane models are compatible with the SHF1503 shaft?
The SHF1503 is commonly used in 8.5 to 12.5-ton Trane light commercial rooftop units, such as the TCD102B and TCD120B series. It is always recommended to verify the specific part number in the unit's service manual before installation.

Can this shaft be used for other 1-inch blower applications?
While the 1-inch diameter is standard, the 18.295-inch length and keyway placement are specific to Trane engineering. Using this as a generic part may lead to spacing issues on the blower housing.

Is the SHF1503 interchangeable with the SHF01503?
Yes, the Trane SHF1503 and SHF01503 are the same technical component. Many modern catalogs have transitioned to the zero-inclusive part number format for OEM Trane parts.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
