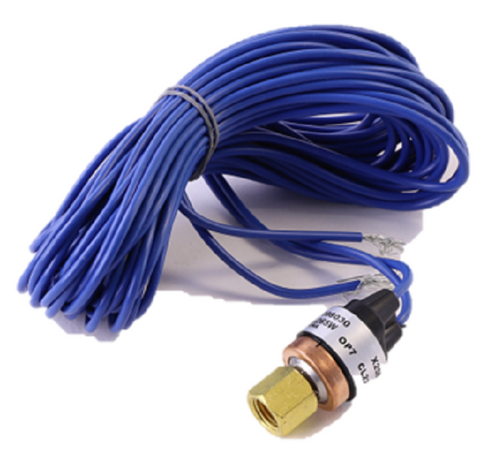

Trane SWT1403 Pressure Switch

As a seasoned technician, you know that a reliable Trane SWT1403 Pressure Switch is the first line of defense against compressor slugging and evaporator freeze-ups. This genuine OEM Trane replacement part, also identified by the updated manufacturer number SWT01403, is a high-precision low pressure control switch designed for critical monitoring in residential and commercial HVAC systems. Operating with a calibrated 7/22# setpoint, this switch is engineered to open the circuit at 7 PSI and close at 22 PSI, ensuring your equipment operates within safe refrigerant pressure parameters. This Trane SWT01403 low pressure switch features a robust SPST configuration and is rated for 120/240V applications, making it a versatile drop-in replacement for a wide range of Trane and American Standard air handlers and rooftop units. With its extended 210-inch leads, this factory-spec control allows for flexible mounting and secure termination in complex control cabinets. When you are troubleshooting short-cycling or "pressure switch open" fault codes, installing this factory-calibrated HVAC low pressure cutout restores system logic to original performance standards without the need for field adjustments.

• Factory-Calibrated Precision: Fixed 7 PSI open and 22 PSI close settings provide consistent protection against low-charge conditions.
• Universal Voltage Compatibility: Engineered to handle 120V or 240V control circuits for broad system integration.
• Extended 210" Leads: Provides ample length for routing through large cabinets, eliminating the need for splicing or lead extensions.
• Direct OEM Replacement: Replaces legacy part number SWT1403 and ensures correct fitment for specific Trane RAUCD and RAUCC models.
• System Protection: Critical for preventing oil migration and ensuring the longevity of HVAC compressors in variable load environments.

How do I verify if the SWT01403 is tripped?
With the system calling for cooling, use a manometer to check suction line pressure. If the pressure is below 7 PSI, the switch should be open. Use a multimeter to check for continuity across the leads; if the system is above 22 PSI and the circuit remains open, the internal diaphragm or contacts have likely failed.

Can this switch be used for high-pressure cutouts?
No, this is a dedicated low pressure control switch. Using a 7/22# switch in a high-pressure application will prevent the system from ever starting, as it would trip immediately upon high-side pressure buildup.

Why does this switch have such long leads?
The 210-inch lead length is specific to large-format Trane air handlers and rooftop units where the control board and the pressure port are located in separate sections of the chassis.
