United Electric 10-C10 Pressure Switch

4/50# SPDT NEMA 4 MINI # SW

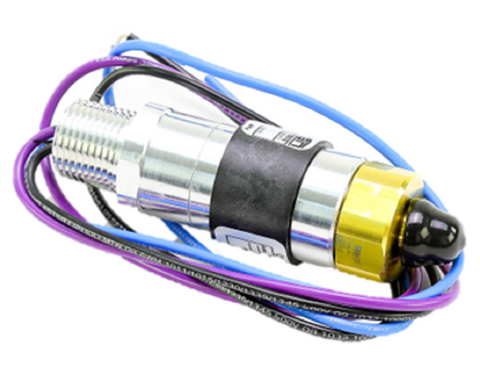

United Electric 10-C10 Pressure Switch – 4 to 50 PSI, SPDT, NEMA 4 Rated

The United Electric 10-C10 Pressure Switch is a compact, reliable solution for precise pressure monitoring and control in industrial applications. Part of the trusted UE Spectra 10 Series, this pressure switch offers a field-adjustable setpoint range of 4 to 50 PSI, making it ideal for a variety of systems requiring accurate pressure detection.

Designed for durability and performance, the 10-C10 features a 1 SPDT switch output, a rugged NEMA 4 aluminum enclosure, and 20" leads for easy wiring. It includes a Buna-N diaphragm and O-ring, a brass 1/8" NPTM pressure connection, and a 1/2" NPTM conduit connection for secure installation in harsh environments.

Key Features:

• Adjustable Setpoint Range: 4 to 50 PSI

• Switch Type: Single Pole Double Throw (SPDT)

• Deadband: 1 to 6 PSI

• Proof Pressure: 3000 PSI

• Overrange Pressure: 1000 PSI

• Diaphragm Material: Buna-N

• Enclosure Rating: NEMA 4, corrosion-resistant aluminum

• Connection: 1/8" NPTM (pressure), 1/2" NPTM (conduit)

• Lead Length: 20 inches

• Application: Ideal for OEM equipment, hydraulic systems, compressors, and other industrial uses

Trusted Performance from United Electric Controls, this pressure switch is engineered for reliability and long service life in demanding environments.

Model: 10-C10
Manufacturer: United Electric (UE)
