United Electric 10-C12 Pressure Switch

30-600# SPDT NEMA4 Mini # Sw.

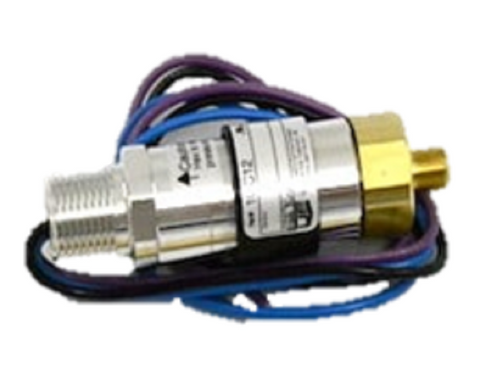

United Electric 10-C12 Pressure Switch – SPDT, 30–600 PSI, NEMA 4, Spectra 10 Series

The United Electric 10-C12 Pressure Switch from the Spectra 10 Series is a compact, high-performance industrial switch designed for precision and durability in demanding applications. With a 30 to 600 PSI adjustable setpoint range, this SPDT switch offers dependable control for pressure monitoring systems in OEM, HVAC, and process industries.

Key Specifications:

• Model: 10-C12

• Switch Type: 1 SPDT Output

• Setpoint Range: Adjustable 30 to 600 PSI

• Deadband: 8 to 60 PSI

• Proof Pressure: 3000 PSI

• Overrange Pressure: 2500 PSI

• Pressure Connection: 1/8" NPTM Brass

• Conduit Connection: 1/2" NPTM

• Leads: 20" Wire Leads

• Diaphragm & O-Ring Material: Buna-N

• Enclosure: NEMA 4 Aluminum – Weatherproof for outdoor/industrial use

Features:

• Reliable and precise pressure control

• Compact NEMA 4-rated enclosure ideal for harsh environments

• Factory-calibrated and adjustable in the field

• Rugged construction for industrial and OEM applications

⚠️ Always consult the product datasheet or your system requirements to ensure proper compatibility.

Choose the United Electric 10-C12 Pressure Switch for accurate and long-lasting pressure control backed by industry-trusted performance.
