Watts 0121427 Valve

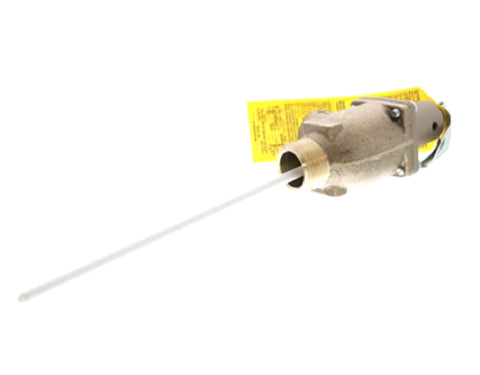

If you are servicing high-capacity commercial water heaters, the Watts 0121427 (Model LF40XL-7-125) is the industry-standard temperature and pressure relief valve for systems requiring high BTU throughput. This 1-inch T&P valve features a 7-inch coated extension thermostat and is engineered to protect potable water tanks from excessive thermal expansion and over-pressurization. It serves as the direct 0121427 updated version for the Watts 0163758, maintaining seamless compatibility for maintenance and replacement in existing mechanical rooms. Built with a lead-free brass body, this automatic reseating valve is rated for a massive 1,808,000 BTU, making it suitable for large-scale boilers and supply tanks. The unit is set to relieve pressure at 125 PSI and temperature at 210°F, utilizing a non-mechanical seat-to-disc alignment to ensure reliable closure after every discharge cycle. For contractors managing commercial water heater safety, this ASME-rated component is a critical HVACR replacement part for ensuring code compliance and equipment longevity.

• High BTU Capacity: Rated for up to 1,808,000 BTU/hr, specifically for large commercial storage tanks and water heaters.
• Direct Retrofit Compatibility: The 0121427 is the drop-in replacement for the older Watts 0163758, ensuring no piping modifications are needed during service.
• Advanced Thermostat Lining: Features a thermo-bonded coating on the 7-inch probe to resist mineral buildup and ensure accurate thermal response.
• Durable Construction: Heavy-duty lead-free brass body with tamper-resistant bonnet screws for localized security and reliable mechanical performance.
• Automatic Reseating: Engineered to fully close after relieving pressure, reducing water waste and preventing continuous dripping in high-demand systems.

Is the Watts 0121427 compatible with older 40XL series valves?
Yes, this model is the updated version for part number 0163758. If your specifications call for a 1-inch 40XL-7-125, this is the current technical standard for that footprint.

What is the difference between this and a standard residential T&P valve?
Residential valves are typically 3/4-inch and rated for lower BTU loads. This 1-inch valve is designed for commercial systems with 1,808,000 BTU requirements and features a 7-inch extended probe to reach deeper into thick tank insulation.

Can this valve be installed in any orientation?
This valve is designed for installation directly into tank tappings or in the hot water outlet line. Techs should ensure the thermostat probe is fully immersed in the top 6 inches of the tank water to function correctly.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
