Watts 0383542 Valve

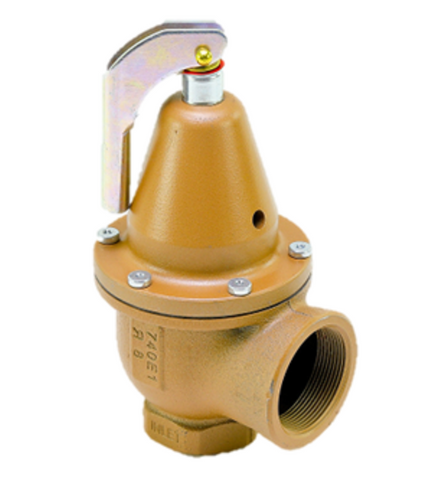

If you are servicing high-output boiler systems, the Watts 0383542 (Model 740-1 1/2-30) is a critical safety component designed for emergency pressure relief. This high-capacity water pressure relief valve features a rugged 1-1/2 inch FNPT inlet and an expanded 2 inch FNPT outlet, specifically engineered to handle massive discharge volumes in hot water space heating applications. With a fixed pressure setting of 30 PSI and a substantial steam relief capacity of 2,900,000 BTU/hr, this valve is built for larger-scale hydronic systems where protecting the boiler vessel from over-pressurization is non-negotiable.

Forged with a heavy-duty iron body construction, the Watts 740 Series utilizes a non-metallic disc-to-metal seating design that prevents the valve from sticking or freezing even in corrosive water conditions. A key technical advantage for contractors is the seat location above the drain, which ensures that water and sediment cannot become trapped and foul the seat. This model also includes a integrated flood sensor with SentryPlus Alert technology, allowing for remote monitoring of discharge events when paired with a compatible activation kit. This is a vital feature for facility managers looking to avoid undetected basement flooding or system failures.

• Large Discharge Capacity: Rated for up to 2,900,000 BTU/hr to protect high-output commercial and residential boilers.
• Anti-Foul Design: The seat is positioned above the drain to prevent sediment buildup and ensure reliable reseating.
• Corrosion Resistance: Features a stainless steel spring and non-metallic disc to withstand harsh hydronic environments.
• Flood Detection Ready: Includes a factory-installed sensor to alert teams of excessive water discharge via BMS or cellular gateways.
• Industry Standard: ASME Section IV rated for hot water heating boilers at a maximum temperature of 250°F.

Is the Watts 0383542 suitable for steam boilers?
No, this is an ASME Section IV hot water boiler pressure relief valve. While it has a BTU steam stripping capacity rating, it is strictly for hot water space heating systems and should not be used on steam-generating boilers.

What is the difference between the 0383542 and the 383542?
These parts are identical. The leading zero is often a distributor formatting difference, but the technical specifications and Watts Series 740 performance are the same.

Does this valve require a specific orientation?
Yes, the valve must be installed with the spindle in the vertical position. The discharge line must be at least the same size as the 2-inch outlet and pitched downward to a safe drainage point to prevent backpressure.
