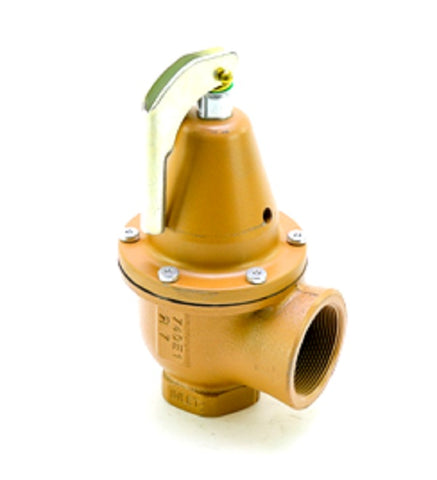

Watts 0383740 Valve

The Watts 0383740 (Series 740) is a high-capacity iron body boiler pressure relief valve designed specifically for large-scale hot water industrial and commercial heating systems. This ASME Section IV certified valve features a 1.5-inch NPT female inlet and a 2-inch NPT female expanded outlet to facilitate rapid pressure discharge, effectively preventing catastrophic system failure due to thermal runaway. With a factory-set relief pressure of 40 PSI and a steam discharge capacity of 3,569,000 BTU/hr, it provides critical overpressure protection for heavy-duty boilers. The 0383740 is the direct replacement for Watts 260-1 1/2-40 and legacy 740-1 1/2-40 configurations. Engineered with a non-mechanical disc-to-metal alignment, the valve seat is positioned above the drain to prevent sediment accumulation and fouling. A high-temperature resistant water seal isolates the stainless steel spring from the discharge flow, ensuring consistent performance and preventing mineral scale from seizing the internal components during operation.

Key Benefits for Technicians

• Large BTU Capacity: Rated at 3,569,000 BTU/hr to handle high-output boiler applications without restricted flow.
• Expanded Outlet Design: A 2-inch expanded outlet reduces backpressure during discharge, enhancing the safety profile of the Watts 740-040.
• Resilient Construction: The rugged iron body relief valve is built to withstand corrosive water conditions and high thermal stress.
• Foul-Resistant Seating: Raised seat design ensures water and sediment are never trapped, preventing the disc from sticking or freezing.
• Professional Compatibility: Explicitly designed as a drop-in replacement for Watts 260 series and 740 series boilers requiring a 40# setting.

Common Technical Questions

What are the primary applications for this Watts 740 series valve?
This valve is strictly for hot water space heating boilers. It is not intended for potable water or steam heating applications where different ASME certifications are required.

Can the pressure setting be adjusted in the field?
No, this unit is factory-set to 40 PSI. Field adjustments to pressure relief valves are prohibited by ASME code as it compromises the safety certifications of the assembly.

Does this valve include the SentryPlus Alert sensor?
Base versions of the 0383740 typically come with the standard test lever; however, certain configurations may include the flood sensor. Always verify the specific MPN suffix if building-level leak detection is required.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
