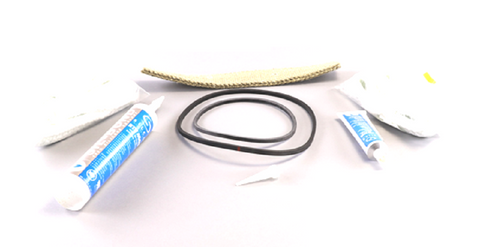

Weil McLain 386-300-213 Kit

The Weil McLain 386-300-213 Section Replacement Kit is a specialized field-service assembly engineered for Series 86 and 88 commercial cast iron boilers. As a critical component for maintaining a gas-tight seal in large-scale hydronic systems, this boiler section seal kit includes high-temperature fiberglass rope (1/2" diameter in 10-foot and 17-foot lengths), precision-molded elastomer sealing rings, industrial-grade high-temp sealant, and dedicated rope adhesive. For technicians performing block assembly or repairs, these OEM boiler parts are essential for preventing combustion gas leaks and protecting the heat exchanger’s integrity against high-pressure exposure. By establishing a permanent, airtight barrier between cast iron sections, this Weil McLain replacement kit optimizes thermal transfer and ensures the combustion chamber remains isolated from the external environment, preventing unburned fuel vapors from compromising the sealing rings. This kit is the professional standard for 86/88 series maintenance, providing a comprehensive solution for field-assembled boiler blocks.

Key Benefits

• Complete Assembly Solution: Eliminates the need to source individual sealing rings and high-temp adhesives separately for 88 series blocks.
• Industrial Heat Resistance: High-density rope seals and aviation-grade sealant withstand extreme firebox temperatures without degradation.
• Leak Prevention: Specifically designed to maintain a gas-tight and watertight seal, preventing flue gas bypass and efficiency loss.
• Direct Compatibility: Precision-fit components tailored for the grooved seal channels of Weil McLain 86 and 88 sections.

Common Questions

Does this kit work for both gas and oil-fired 88 series boilers?
Yes, the materials in this section replacement kit are rated for the high-temperature environments found in both gas and oil-fired Weil McLain Series 86/88 commercial units.

How do I handle the rope and adhesive during installation?
Technicians should clean the casting grooves thoroughly before applying the rope adhesive. Ensure the 1/2" fiberglass rope is seated firmly to prevent pinching during section draw-up.

What is the purpose of the liquid sealant included in the kit?
The silicone sealant is applied to specifically protect the elastomer sealing rings from potential oil vapor contact, which is vital for long-term gasket life in oil-fired applications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
