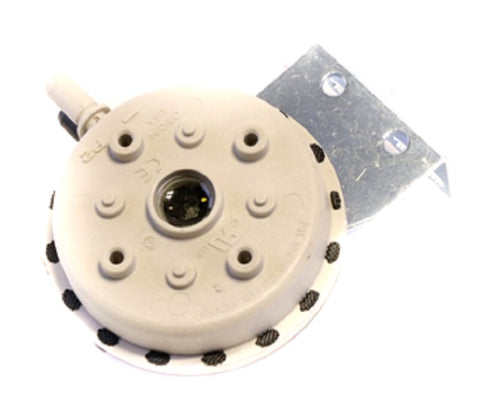

Weil McLain 511-624-452 Pressure Switch

The Weil McLain 511-624-452 is a high-precision OEM replacement pressure switch designed specifically for CGi Series boilers (sizes 5 and 6) and select HE/VHE models. Engineered for critical safety monitoring, this differential air pressure switch features a 0.75" WC (Water Column) set point with an SPDT (Single Pole Double Throw) contact configuration. As a veteran technician knows, maintaining the correct exhaust draft inducer pressure is vital for safe ignition sequences; this component ensures the inducer motor pulls sufficient vacuum to vent combustion gases before the gas valve is energized. The unit utilizes dual 1/4" barb connections for easy integration with standard silicone or rubber sensing tubes, providing reliable performance even at altitudes between 2,000 and 10,000 feet. By monitoring the pressure differential across the heat exchanger or venting system, this Weil McLain 511-624-452 pressure switch prevents hazardous operation during flue blockages or inducer failure, protecting both the equipment and the facility.

• Precise 0.75" WC Calibration: Pre-set to exact factory specifications to ensure seamless compatibility with Weil McLain CGi boilers without the need for field adjustment.
• SPDT Electrical Circuitry: Provides versatile switching capabilities to interface correctly with various boiler control boards and safety interlock loops.
• Rugged Dual Barb Design: The 1/4 inch barb connections ensure a secure, leak-free fit for vacuum hoses, minimizing nuisance "air flow not proven" service calls.
• High-Altitude Compatibility: Designed to maintain accurate trip points in challenging venting environments, including installations up to 10,000 feet.

How do I troubleshoot an "Air Flow Not Proven" error on a Weil McLain boiler?
First, verify 24V at the Weil McLain 511-624-452 terminals. If the inducer is running but the switch isn't closing, use a manometer to check if the actual draft exceeds 0.75" WC. Also, inspect the sensing lines for cracks or moisture buildup.

Can I use a universal pressure switch to replace the 511-624-452?
Using a genuine OEM replacement is highly recommended. Universal switches often lack the specific .75" WC calibration and SPDT logic required by Weil McLain's safety sequence, which can lead to intermittent ignition failures or dangerous operating conditions.

What causes a pressure switch to stay open during a call for heat?
Common culprits include a failing draft inducer motor, a restricted chimney or venting pipe, a clogged collector box port, or a ruptured internal diaphragm within the switch itself.
