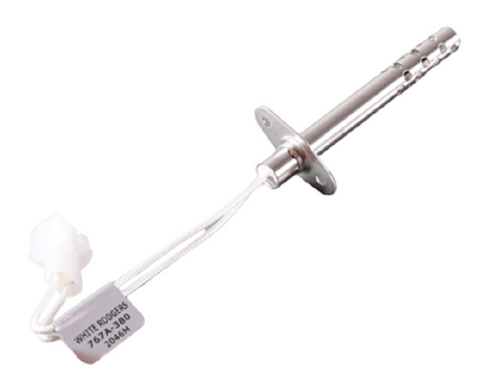

White-Rodgers 767A-380 Ignitor

The White-Rodgers 767A-380 is a high-performance silicon carbide hot surface ignitor designed for high-efficiency gas furnaces and boilers. This 120V mini-ignitor serves as a direct OEM replacement for the Armstrong 44744-2 and the Robertshaw 41-604, ensuring a drop-in fit without the need for additional field modifications. Equipped with 6.125-inch leads and stripped-end connections, it is engineered for systems utilizing 15, 17, or 45-second ignition cycles. As a veteran-grade furnace ignitor, its robust carbide construction withstands extreme thermal cycling, providing reliable ignition in residential and light commercial equipment including rooftop units and infrared heaters.

For contractors performing service calls, identifying the White-Rodgers 767A-380 as a universal field solution is key to reducing truck stock. This hot surface igniter features high-temperature lead insulation rated for 200°C, critical for maintaining integrity within tight burner compartments. When performing the replacement, technicians should retain the original mounting brackets, although the 767A-380 accommodates multiple mounting configurations common in Norton 601XBM style applications.

• Direct OEM Compatibility: Seamlessly replaces Armstrong 44744-2 and Robertshaw 41-604 models.
• Universal Timing: Fully compatible with 15, 17, and 45-second HSI control modules.
• Thermal Resistance: Equipped with industrial-grade lead insulation rated for up to 200°C.
• Precise Fit: Features a mini-style profile for restricted burner ports in modern high-efficiency furnaces.
• Field-Ready Leads: Includes 6.125" lead wires with stripped ends for fast securement.

• Can I touch the ignitor surface during install? No. Handle this part only by the ceramic base. Skin oils can create hot spots on the carbide, leading to premature fracture.
• Does this work with 24V systems? No, this is a 120V line-voltage component. Always verify control board output before installation.
• What if the original connector doesn't match? The stripped ends allow for direct wiring using ceramic wire nuts, making it adaptable to several legacy terminal styles.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
