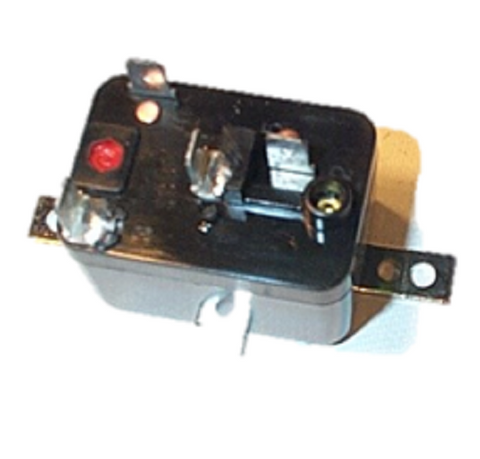

White-Rodgers 90-292Q Relay

The White-Rodgers 90-292Q Relay is a heavy-duty, 208/240V AC-operated fan relay designed for reliable switching in HVACR systems. As a Single Pole Normally Open (SPNO) component, this WR/RBM Type 84 relay is engineered for the demands of switching single or two-speed fan motors, solenoids, and resistive loads in both heating and cooling applications. The 240V coil relay features a high-impedance coil with 7,000 Ohms DC resistance, drawing a nominal 12.5 mA, making it an efficient choice for general-purpose high-voltage switching. Its compact, totally enclosed design protects internal components from debris, ensuring consistent performance in mechanical rooms. This HVAC fan relay is rated for up to 16 Amps resistive or 8 Amps continuous inductive loads at 125/250 VAC, handling 25 Amp inrush current with ease. Industry-standard 1/4 inch quick-connect terminals facilitate straightforward integration into existing control circuits for contractors performing field replacements or upgrades on OEM equipment.

• Universal Application: Functions as a high-performance replacement for numerous OEM fan relays in air conditioning and refrigeration units.
• Industrial Duty: Capable of handling 8A continuous and 25A inrush inductive loads, suitable for blower motors and heavy solenoids.
• Compact Enclosure: The fully enclosed housing allows for mounting in any position while protecting contacts from the environment.
• High Compatibility: Standard SPNO relay wiring with quick-connect Spade terminals simplifies installation on the job site.

What is the primary function of the White-Rodgers 90-292Q?
This is an SPNO fan relay used to switch line-voltage fan motors or other resistive/inductive loads on and off based on a 208/240V signal from the controller.

Can I use this relay to replace a 120V model?
No, the 90-292Q technical specifications require a 208/240 VAC coil input. Using a lower voltage will fail to energize the coil, and higher voltages will cause damage.

Are the terminals compatible with standard HVAC wiring?
Yes, it features 1/4" male quick-connect terminals, which are the industry standard for most HVAC switching relays.
