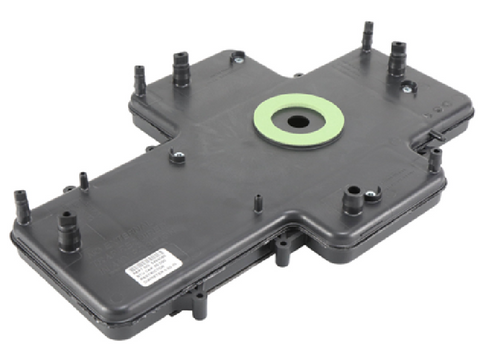

York S1-328-16448-000 Condensate Pan Kit

The York S1-328-16448-000 Condensate Pan Kit is a critical OEM replacement component designed specifically for 33-inch, 95%+ AFUE condensing gas furnaces with an 80,000 BTU capacity (non-modulating). As a veteran technician knows, maintaining proper furnace drainage is essential to prevent secondary heat exchanger corrosion and vestibule leakage. This HVAC condensate management kit features a precision-molded, corrosion-resistant collection pan that integrates with the combustion blower assembly. Engineered for direct fitment, the York replacement drain pan ensures that moisture from the combustion process is efficiently directed to the drain lines, protecting the internal furnace cabinet from water damage. When performing an install, ensure the gasket is properly compressed between the pan and the vestibule panel to maintain a vacuum seal. This genuine OEM HVAC part is the standard for restoring factory-spec drainage performance in residential high-efficiency furnace systems.

• OEM Compatibility: Specifically engineered for York 33-inch 95%+ AFUE condensing furnaces (80,000 BTU Non-Modulating models).
• Corrosion Resistance: Fabricated from high-grade materials to withstand the acidic nature of furnace condensate.
• System Protection: Prevents water accumulation in the furnace cabinet, protecting the control board and blower motor from moisture.
• Direct Fit Design: Includes necessary mounting points for the combustion blower and pressure switch hoses.

Common Questions

Does this kit include the blocked condensate pressure switch?
This kit is the pan assembly. Depending on the specific furnace serial number, some installations require updating to a new pressure switch (such as the -0.20” w.c. model) to ensure proper safety circuit operation with the new pan design.

What is the proper torque for installing the pan screws?
The factory-recommended torque is 20 +/- 3 in-lbs. Use hand tools to avoid over-tightening, as excessive force can crack the plastic housing and lead to immediate leaks.

Can I use this on a modulating 80,000 BTU unit?
No, this specific part (S1-328-16448-000) is calibrated with an 0.80 IN restrictor hole for non-modulating 80K BTU units. Modulating units typically require a different restrictor size for proper drainage and pressure readings.
