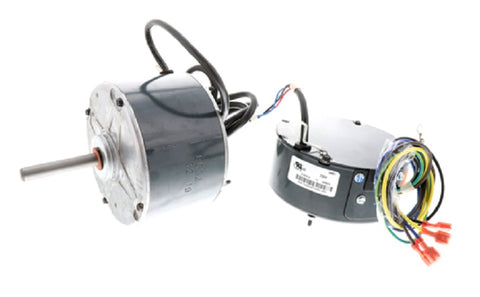

York S1-024-35894-000 Motor

The York S1-024-35894-000 Motor is a direct-drive OEM replacement designed for high-static condenser and air handling applications. Operating at 230V Single Phase, this 1/3 HP Condenser Fan Motor delivers a consistent 1100 RPM, ensuring optimal heat transfer and pressure stabilization within the refrigerant circuit. Built on a standard NEMA 48 frame, it features high-grade internal windings to manage thermal load during continuous duty cycles. For technicians performing field service, this motor facilitates a drops-in fit for specific York, Luxaire, and Coleman units, matching original equipment torque curves and amperage draws. Identifying the correct York OEM Replacement Parts is critical for maintaining system efficiency and avoiding sub-optimal airflow patterns that lead to compressor stress. When performing a swap, verify that the capacitor rating matches the requirements of this 1100 RPM HVAC Motor to ensure a clean start-up and balanced running current.

Key Benefits

• OEM Compatibility: Precision engineered as a direct replacement for York part S1-024-35894-000, eliminating the need for bracket modifications or lead wire extensions.
• Industrial Build Quality: The 48 frame configuration provides the structural rigidity required for long-term outdoor exposure and vibration resistance.
• Optimized Performance: Specifically wound for 230V 1PH power supplies, providing the high starting torque necessary for heavy-duty fan blades.
• Standardized Specs: The 1/3 HP rating and 1100 RPM speed profile are calibrated to meet the exact airflow CFM requirements of the original system design.

Common Questions

What is the frame size for the York S1-024-35894-000?
This motor utilizes a standard NEMA 48 frame, which is the industry standard for most residential and light commercial condenser fan applications.

Is the S1-024-35894-000 compatible with 208V systems?
While many 230V motors are rated 208-230V, you must verify the specific amperage draw on your data plate to ensure this 230V 1PH motor operates within its service factor on a 208V circuit.

Does this motor require a specific capacitor?
Yes, as a permanent split capacitor motor, it requires a run capacitor. Check the motor label for the specific MFD and voltage rating needed to ensure proper phase displacement.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
