York S1-032-00170-001 Drain Pan

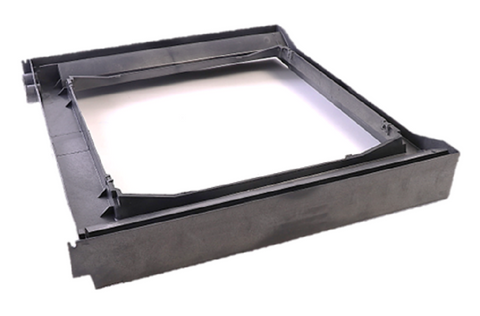

The York S1-032-00170-001 Drain Pan is a critical OEM replacement component designed for high-efficiency evaporative coils in residential and light commercial air handlers. Precision-molded from durable, heat-stabilized gray plastic, this 24-inch drain pan is engineered to withstand the rigorous thermal cycling of modern HVAC systems without the cracking or warping common in legacy composite materials. For professional contractors, maintaining the structural integrity of the HVAC condensate drain pan is essential to prevent secondary water damage to furnace cabinets and surrounding structures. This heavy-duty York replacement part features a sloped bottom design to ensure positive drainage toward the outlet, effectively eliminating stagnant water and reducing the risk of microbial growth or biosliming within the primary drain assembly.

Key Benefits

• OEM Fitment: Guaranteed compatibility with York, Luxaire, and Coleman F4FP and F2FP series fan coil units.
• Corrosion Resistance: High-density plastic construction outlasts traditional metal pans, resisting rust and chemical breakdown from acidic condensate.
• Enhanced Moisture Management: Integrated drainage pitch facilitates rapid water removal, protecting electrical components from moisture exposure.
• Simplified Installation: Compact 22.3" x 22.5" footprint allows for precise positioning in tight cabinet spaces during coil maintenance or replacement.

Common Questions

Is the York S1-032-00170-001 compatible with multi-position coils?
This 24-inch vertical pan is specifically designed for vertical or upflow applications. Always check your specific coil chassis dimensions and drain port alignment before ordering.

What are the signs of a failing HVAC drain pan?
Technicians should look for hairline fractures in the plastic, water pooling at the base of the air handler, or musty odors indicating that the sloped bottom is no longer directing water to the primary line.

Does this pan include the secondary drain plug?
This part number is for the individual drain pan assembly. Always verify if your existing drain line fittings and overflow switches require new threaded connectors or gaskets during the swap.
