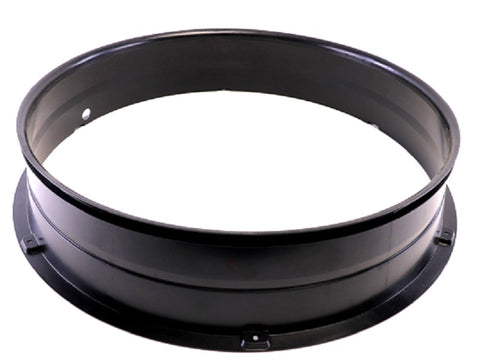

York S1-032-00183-000 Fan Orifice

The York S1-032-00183-000 Fan Orifice is a precision-engineered 24-inch fan orifice designed to optimize airflow dynamics in residential air conditioning and commercial condensing units. As the direct replacement for 032-00003-000, this OEM component ensures a seamless fit for technicians performing field repairs or maintenance. In the field, an exact orifice diameter is critical; this HVAC replacement part is specifically calibrated to reduce air turbulence around the fan blades, which directly minimizes pressure drops and enhances overall HVAC system efficiency. By maintaining tight tolerances, the York S1-032-00183-000 prevents air recirculation, ensuring the condenser coil receives consistent, laminar airflow for maximum heat rejection. Proper installation of this 24" fan orifice is essential for protecting the condenser fan motor from unnecessary load and achieving the rated SEER performance of the unit. Its durable construction is built to withstand high-velocity discharge and outdoor environmental stress, making it a reliable choice for long-term service cycles.

• Optimized Airflow Geometry: The 24-inch diameter is precision-tapered to guide air efficiently through the fan assembly, reducing static pressure and turbulence.
• OEM Compatibility: Serving as the official S1-032-00183-000 replacement, it guarantees perfect alignment with York, Luxaire, and Coleman equipment including models like E1FB036 and E4FH042.
• Improved System Lifespan: By stabilizing airflow, this component reduces vibration and mechanical strain on the fan motor and blade assembly.
• Lower Energy Consumption: Better air dissemination through the system allows the unit to reach setpoints faster, reducing total compressor and fan runtime.

Is the S1-032-00183-000 compatible with older York units?
Yes, it is the designated direct replacement for the legacy part number 032-00003-000, ensuring it meets the original manufacturer specifications for older 24" fan systems.

Can I use a universal 24-inch orifice instead of this OEM part?
Using a universal part is not recommended. This HVAC orifice is specifically engineered for the aerodynamic profile of York fan blades; an incorrect taper or depth can lead to increased noise and decreased cooling capacity.

What are the physical dimensions for shipping and installation?
The unit measures approximately 31" x 30.5" x 6.5" and has a shipping weight of 5 lbs, making it manageable for single-technician installation in standard condensing units.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
