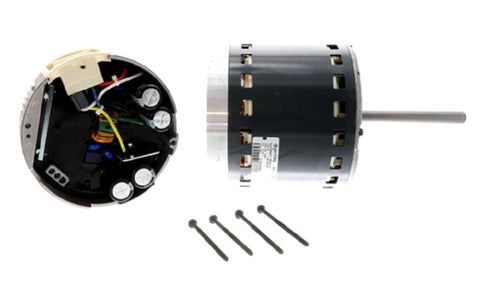

York S1-324-36074-273 Blower Motor

For service technicians requiring a high-performance replacement, the York S1-324-36074-273 is a 1HP ECM Blower Motor engineered for advanced HVAC air handler and furnace applications. This OEM York replacement motor operates on a 208-230V single-phase circuit, providing variable-speed capabilities that ensure precise airflow control and optimal static pressure management. As an electronically commutated motor, it significantly reduces electrical consumption compared to standard PSC motors while maintaining consistent torque across varying duct conditions. The factory-programmed control module is designed for seamless integration with York climate control systems, eliminating the need for field programming. Built with high-grade components and a heavy-duty steel casing, this variable speed blower motor provides the reliability needed for 24/7 air circulation in demanding residential and commercial environments. Ensure your furnace blower motor replacement meets original manufacturer specifications with this energy-efficient, direct-drive unit.

Key Benefits:

• Efficient Performance: Advanced ECM technology delivers high-torque output with lower amperage draw.
• Precise Airflow: Variable speed logic adapts to system demand for improved dehumidification and temperature consistency.
• Direct OEM Fit: Drop-in replacement for specific York, Luxaire, and Coleman air handlers including model MV20DN21C.
• Reduced Maintenance: Brushless design and permanently lubricated ball bearings minimize mechanical wear and noise vibration.
• System Compatibility: Designed to interface perfectly with existing system control boards for 208-230V applications.

Common Questions:

Does this motor require external programming in the field?
No, the York S1-324-36074-273 comes with a pre-programmed control module calibrated to specific OEM airflow parameters for compatible units.

Can I use this motor to replace a standard 1HP PSC motor?
This is a dedicated ECM blower motor. It is intended for systems specifically designed for ECM technology and is not a direct wiring substitute for traditional induction motors without significant control modifications.

What are the power requirements for this unit?
This motor is rated for 208-230V, 50/60Hz, single-phase power, making it suitable for standard residential and light commercial HVAC voltage configurations.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
