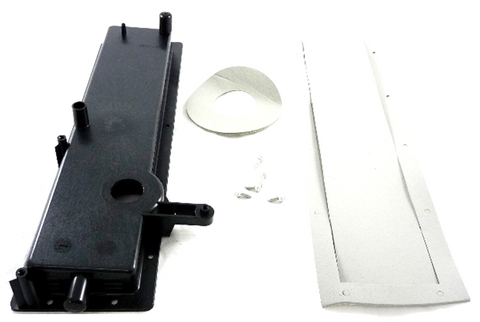

York S1-328-12454-000 Condensate Pan

The York S1-328-12454-000 Condensate Pan is a high-grade OEM replacement component specifically engineered for 5-cell furnace heat exchangers used in York, Luxaire, and Coleman equipment. This HVAC drain pan replacement is constructed from thermal-resistant materials designed to withstand the cyclic heating and cooling of residential gas furnaces without warping or cracking. Maintaining the integrity of the condensate pan with gasket is vital for preventing moisture intrusion into the burner assembly and secondary heat exchanger, which can lead to premature system failure. This particular York furnace part includes a factory-installed gasket to ensure a pressurized seal against the header box, maintaining proper static pressure and preventing flue gas leakage. When performing a York S1-328-12454-000 swap, technicians should inspect the heat exchanger cells for corrosion. This direct-fit pan ensures reliable drainage of acidic condensate during the combustion process, protecting the furnace cabinet and surrounding flooring from water damage.

Key Benefits

• Precision Fit: Designed for 5-cell heat exchanger configurations to ensure standard OEM alignment.
• Leak Prevention: Includes an integrated gasket for a secure, airtight seal against the collector box.
• Thermal Durability: Engineered to resist high-temperature fluctuations common in high-efficiency condensing furnaces.

Common Questions

How do I know if the condensate pan is the source of my furnace leak?
Technicians should check for cracks near the drain port or warping along the gasket line. If water is pooling inside the furnace cabinet below the inducer motor, the pan or gasket has likely failed.

Is this part compatible with Coleman and Luxaire brands?
Yes, as a specialized York OEM component, this pan is the direct replacement for many 5-cell models across the Johnson Controls (JCI) brand family.

What causes these pans to fail prematurely?
Constant exposure to acidic condensate and high thermal stress can cause standard pans to become brittle over time; utilizing this OEM reinforced pan restores original factory drainage specifications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
