York S1-363-90016-006 Heat Exchanger

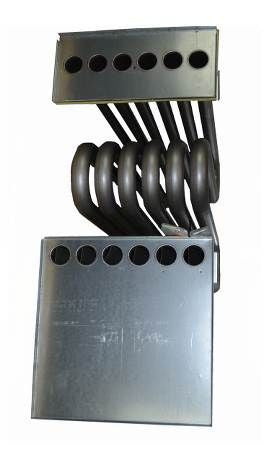

The York S1-363-90016-006 Heat Exchanger is an OEM replacement part designed for high-tonnage residential and light commercial packaged units. Engineered with a robust 6-tube configuration, this assembly facilitates efficient thermal transfer by circulating combustion gases through specialized tubular pathways. Internal baffles are strategically integrated to provide structural rigidity, effectively dampening harmonic vibrations and preventing mechanical fatigue during high-fire cycles. For contractors balancing airflow and static pressure, the precision-spaced tubes ensure optimal surface area contact without compromising the unit's induction draft performance.

Dimensions measuring approximately 47" x 47" x 28" confirm this is a heavy-duty tubular heat exchanger built for specific York, Luxaire, and Coleman models, including the D4CG150 and DDUC-W150 series. When executing a furnace heat exchanger replacement, verify the secondary and primary heat sections for integrity. This genuine York furnace part maintains the factory-specified pressure drop and temperature rise, ensuring the burner assembly operates within design parameters. Replacing a compromised exchanger with this 6-tube model is essential for restoring reliable heat transfer and maintaining safe flue gas exhaustion in 12.5-ton packaged equipment.

• Direct OEM Compatibility: Built to the exact specifications of York S1-363-90016-006, eliminating the need for field modifications or bracket adjustments.
• Vibration Dampening: Integrated baffles minimize resonant noise and structural stress during inducer motor operation.
• High Thermal Conductivity: The 6-tube design maximizes the heat transfer coefficient, ensuring the system meets target supply air temperatures.
• Durable Construction: Engineered to withstand the thermal expansion and contraction cycles typical of light commercial heating applications.

• Which units are compatible with the S1-363-90016-006? This part is primarily found in 150MBH (12.5 ton) York, Luxaire, and Coleman packaged gas/electric units, such as the D1EG, D2EG, and D4CG series.
• Are the mounting gaskets included with the tube assembly? Technicians should verify the condition of existing burner and inducer gaskets; it is standard practice to replace these seals during a heat exchanger swap to prevent combustion leaks.
• What is the primary cause of failure in these 6-tube exchangers? Excessive temperature rise caused by restricted airflow or undersized ductwork often leads to stress fractures at the header plate or along the tube seams.

This item must ship via truck. Please contact us for for freight quote.
