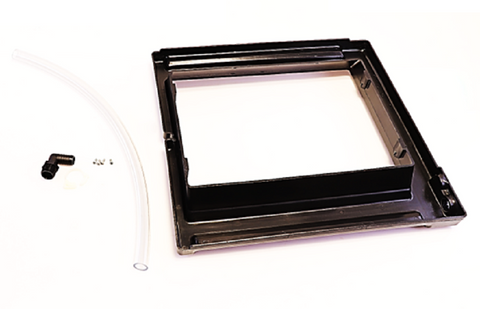

York S1-6324-5101 Drain Pan

The York S1-6324-5101 Drain Pan is a critical OEM replacement component designed for high-efficiency condensate management in York, Coleman, and Evcon HVAC systems. Engineered specifically for downflow A-coils frequently found in mobile home furnaces and residential air handlers, this drain pan features a heavy-duty, corrosion-resistant plastic or galvanized steel construction (depending on the specific production series) to withstand constant moisture exposure without cracking or leaking. With nominal dimensions of 18" x 19.5" and an inner opening of 11" x 16", it is optimized for evaporator coils with fin lengths ranging from 16 to 17.5 inches. As a direct replacement for legacy part numbers 3340-5011, 3440-5011, and 6224-5091, this condensate drip pan ensures a precision fit that prevents costly water damage to the furnace chassis and flooring. Technicians should verify the coil fin length and drain line positioning before installation to ensure seamless HVAC drainage system integration and optimal secondary containment performance.

• Precision OEM Compatibility: Engineered as a direct fit for York S1-6324-5101, ensuring zero-clearance issues during evaporator coil maintenance.
• Rugged Material Integrity: Fabricated from high-density, heat-stabilized materials to resist structural warping in high-temperature furnace plenums.
• Optimized Drainage Slope: Features a factory-tapered design to facilitate immediate moisture runoff toward the primary drain port, reducing standing water and biological growth.
• Universal Replacement Path: Effectively replaces multiple discontinued Coleman-Nordyne and Evcon drip pan models, simplifying inventory for service trucks.

What specific coil sizes does the S1-6324-5101 fit?
This pan is designed for downflow A-coils with a fin length between 16 and 17.5 inches. Always measure the active fin area, excluding the header tubes, to confirm a proper seal.

Is this pan compatible with gas furnaces or only electric air handlers?
It is primarily utilized in downflow configurations for mobile home gas furnaces and select residential electric air handlers where moisture must be channeled away from the heat exchanger.

Does this include the drain hose attachment kit?
This item is the replacement pan only. If the existing condensate drain hose or fittings are brittle or clogged, they should be sourced separately to ensure a leak-proof system.
