ZoneFirst SPRD-12X10 Damper

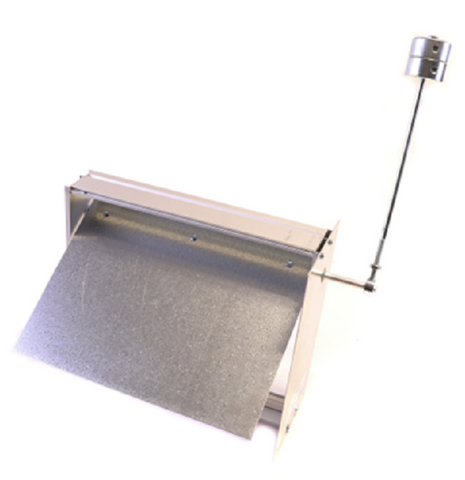

Establishing proper bypass airflow is essential for any multi-zone residential or light commercial system, and the ZoneFirst SPRD-12X10 provides a reliable, barometric solution for managing static pressure. This 12" wide by 10" high barometric relief damper is engineered to automatically divert excess air back to the return air plenum when zone dampers close, preventing high-velocity noise and maintaining consistent CFM delivery across active zones. As a direct replacement for the legacy PRD-12X10, it features a 22-gauge galvanized steel frame and a single-blade design equipped with an adjustable counter-balanced weighted arm. This allows for precise calibration and pressure regulation up to 0.5" W.C., ensuring the blower motor operates within its designated performance curve to prevent equipment cycling and coil freeze-ups. Designed for versatile field installation, the unit accommodates both horizontal and vertical mounting positions, making it a staple for contractors optimizing HVAC zoning systems.

Key Benefits

• Direct Replacement: Seamlessly replaces the older ZoneFirst PRD-12X10 model with the same footprint.
• System Protection: Reduces external static pressure to protect blower motors and prevent evaporator coil icing.
• Field Adjustable: Simple weighted arm allows for quick set-point calibration without the need for specialized tools.
• Quiet Operation: Eliminates the "whistling" associated with high-pressure air forced through small duct runs.
• Rugged Construction: Built with 22-gauge zinc-plated steel for long-term durability in high-cycle forced air systems.

Common Questions

How do I adjust the opening pressure for this barometric damper?
The opening threshold is controlled by the position of the weight on the external arm. Moving the weight further from the pivot increases the pressure required to open the blade, while moving it closer allows for static pressure relief at lower levels. Always use a manometer for precise duct pressure measurement during setup.

Can the SPRD-12X10 be installed in an up-flow or down-flow configuration?
Yes. This bypass damper supports both horizontal and vertical installation. When mounting vertically, the counterweight must be readjusted to account for the blade's gravity, ensuring it rests in the closed position when the system is off.

Is this damper compatible with variable speed ECM motors?
While barometric dampers like the SPRD series are effective, they are most commonly paired with PSC motors. For advanced ECM motors that ramp based on torque, ensure the bypass duct is sized correctly to prevent the motor from constantly hunting for a target airflow.
